ASTM Distance Area Amplitude Block Set of 10 (Metric Version) STAINLESS STEEL 316

ASTM Distance Area Amplitude Block Set of 10 (Metric Version) STAINLESS STEEL 316

Price: $0.00

Part Number : NDE FLAW TECH-ASTM SET BLOCK-1348

Availability : In Stock

Description

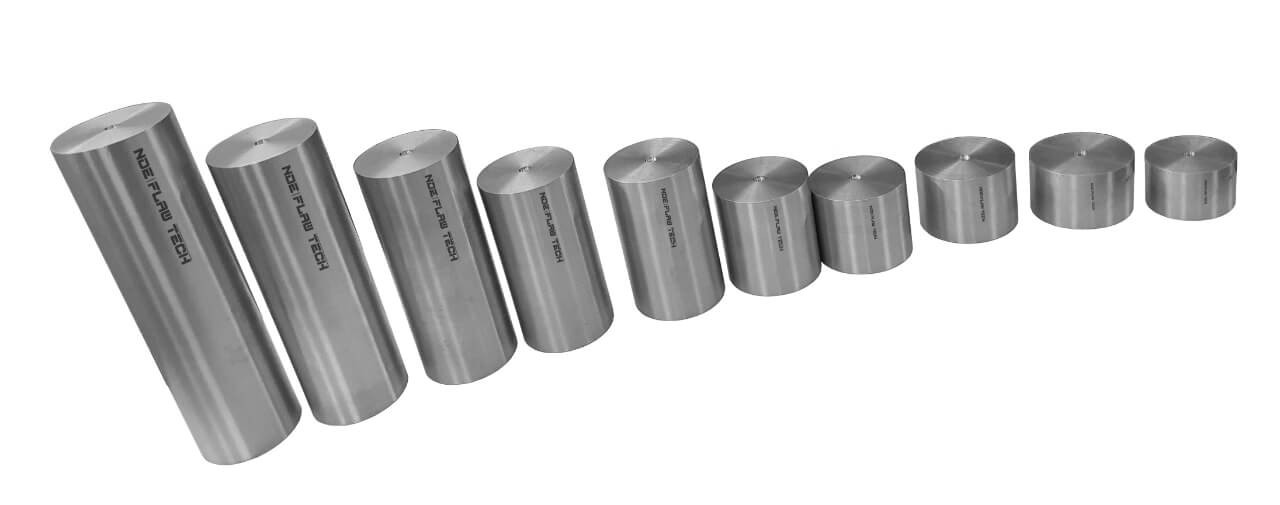

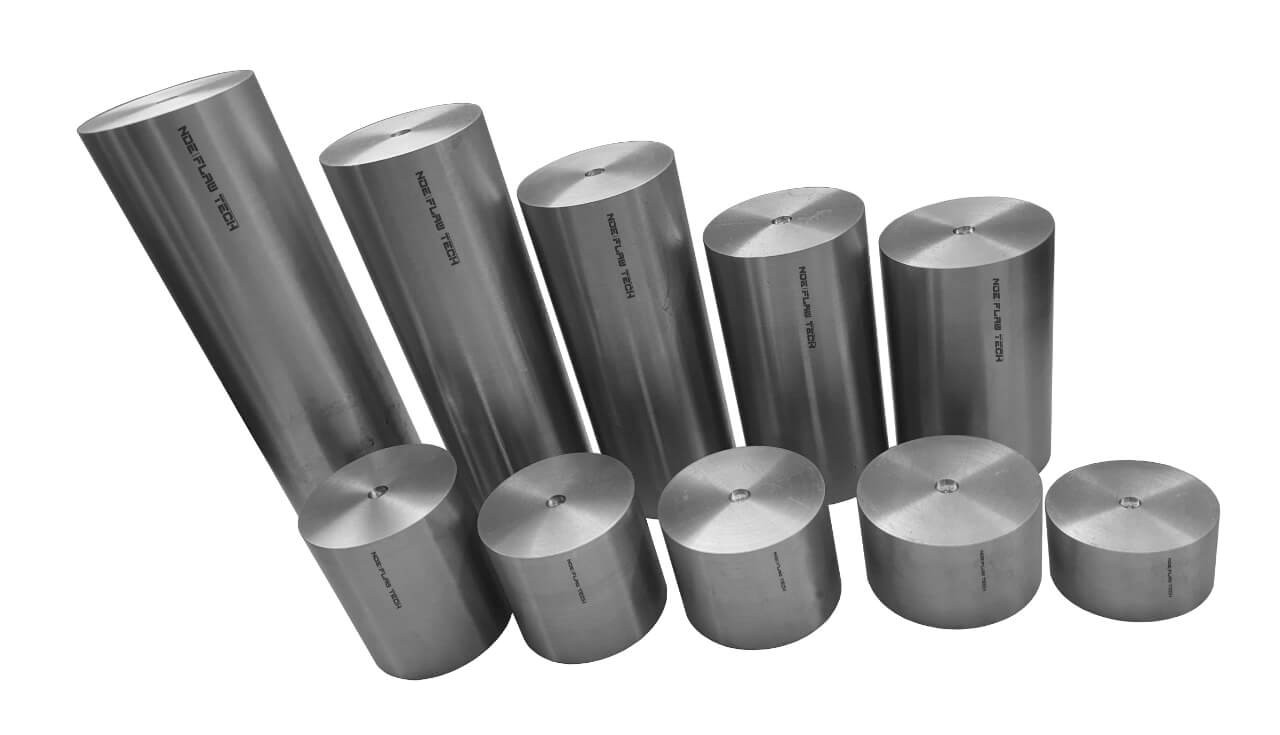

ASTM Distance Area Amplitude Block Set of 10 (Metric Version) STAINLESS STEEL 316

ASTM E428 Distance Area Amplitude Calibration Blocks Basic set of ten flat-bottom hole blocks used to determine dead zone, sensitivity, distance and area amplitude linearity measurements. In accordance with ASTM E428. Includes our NIST traceable dimensional certification report, ultrasonic inspection report and two response plots from Tactic Inc, and the certified material test report. Note that we use a 5.0 MHz quartz transducer for block characterization as required by ASTM E127, Section 11.

Geometry: Set of 10 Contains the following hole diameters and metal travel distances: 1.2mm - 75mm (3-0300),  2mm – 3mm (5-0012), 2mm – 6mm (5-0025), 2mm - 12.5mm (5-0050), 2mm – 19mm (5-0075), 2mm - 38 (5-0150), 2mm – 75mm (5-0300), 2mm – 150mm (5-0600), 3.2mm – 75mm (8-0300) and 3.2mm – 150mm (8-0600).

Dimensions: 1.2mm at 75mm MTD; 2mm at 3.2mm, 6mm, 12.5mm, 19mm, 38mm, 75mm and 150mm MTD; and 3.2mm at 75mm and 150mm MTD. Block diameter is 50mm.

Material: STAINLESS STEEL 316.

Note: For special alloy request by mail.
