We "NDE Flaw Technologies Private Limited from INDIA" commonly known as NDE FLAW TECH. The company was established in 2012 and incorporated in 2015, the company is working as per Indian government rules and regulations.
NDE FLAW TECH Was Established As NDT Reference Standards And Flawed Weld Specimens Manufacturing Company, For Inspection Industries Provider To Cater The Requirements Of Various Industries In India As Well As Abroad. The Product We Provide Are Of The Highest Quality To Meet The Standard Inspection Requirements Of The Modern Industries.
All The Manufacturing Activities Are Carried Out To Meet The Client Requirements In Accordance With Respective Company Specification Or National / International Standards By Knowledgeable Staff.
Projects Completed In The Last Years
Happy Customers Who Trusted Us

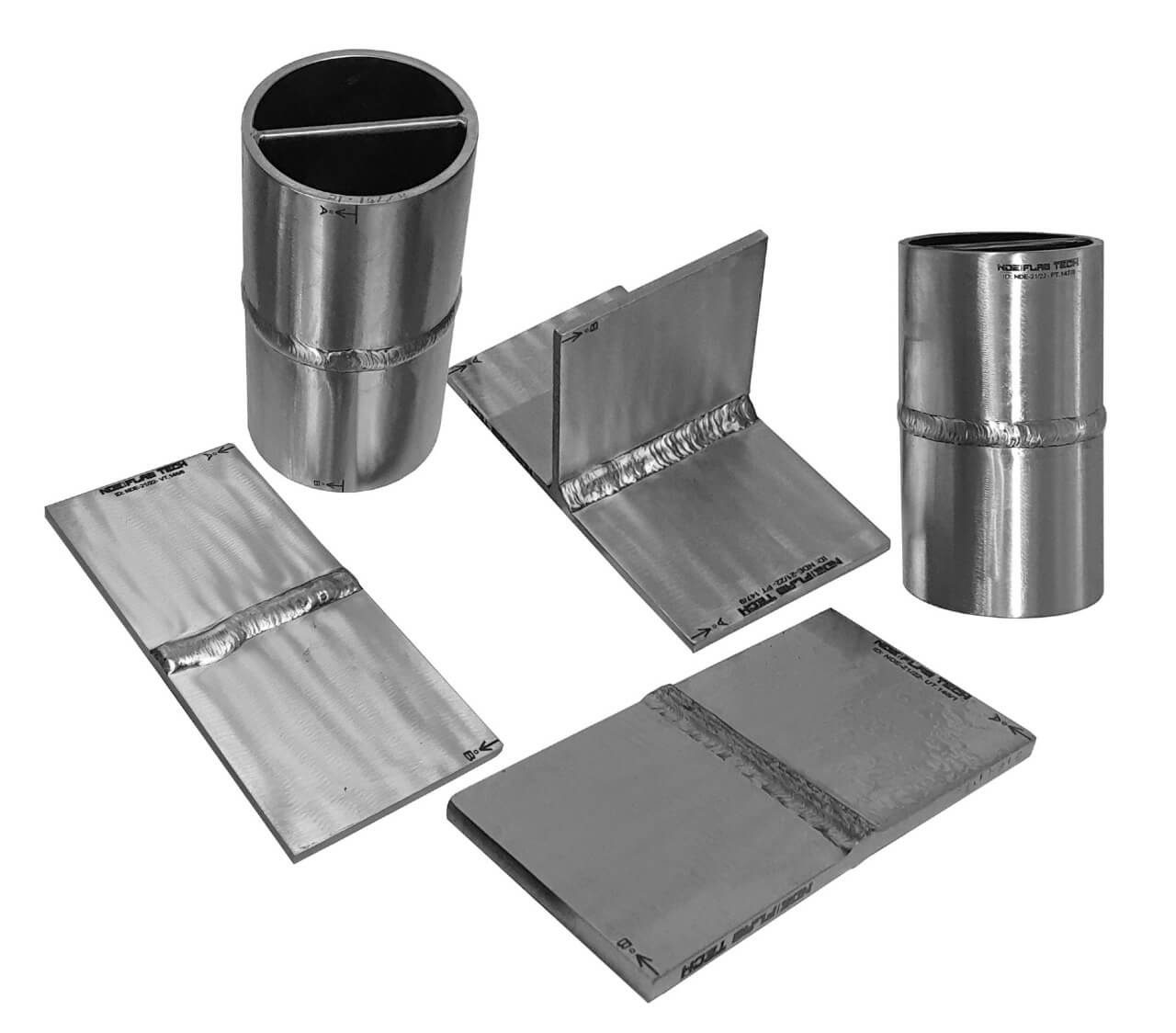

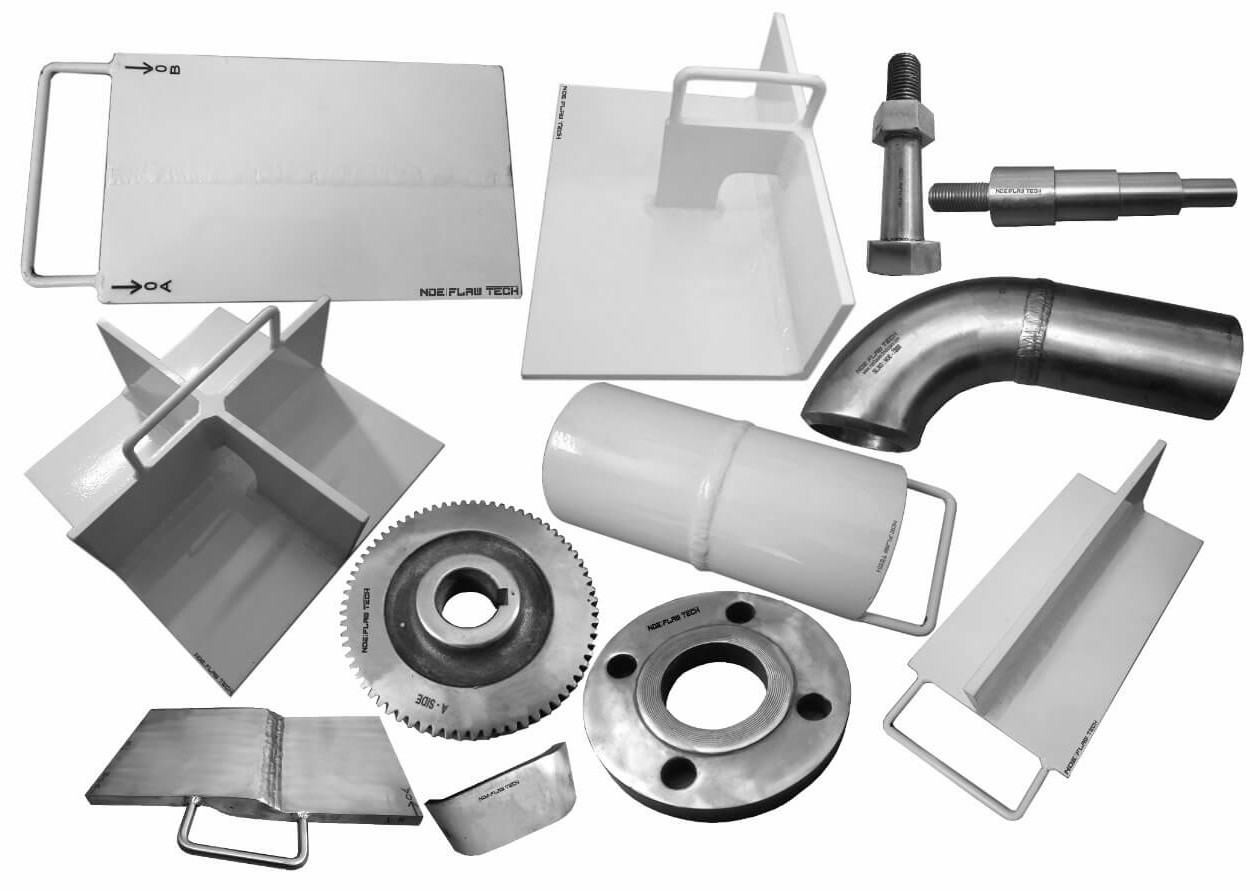

At NDE FLAW TECH, we are at the forefront of Non-Destructive Testing (NDT) & Evaluation (NDE), providing high-precision Flawed Specimens for: NDT Training & Certification, Mockup Examinations & Technician Qualification, NDT Project Validation & Procedure Development, Research & Development (R&D) Equipment Testing & Calibration. Our welded flaw specimens and defect simulation samples are manufactured with meticulous precision, ensuring that professionals are trained and tested under real-world conditions. Engineered for Realistic Flaw Representation, Each specimen is custom-designed to meet and exceed global standards, ensuring the highest levels of accuracy in NDT training, qualification, and performance testing. At NDE FLAW TECH, we are committed to advancing the field of Non-Destructive Testing (NDT) by delivering precision-engineered flawed specimens that serve as the backbone for comprehensive training, rigorous examination, and cutting-edge research.

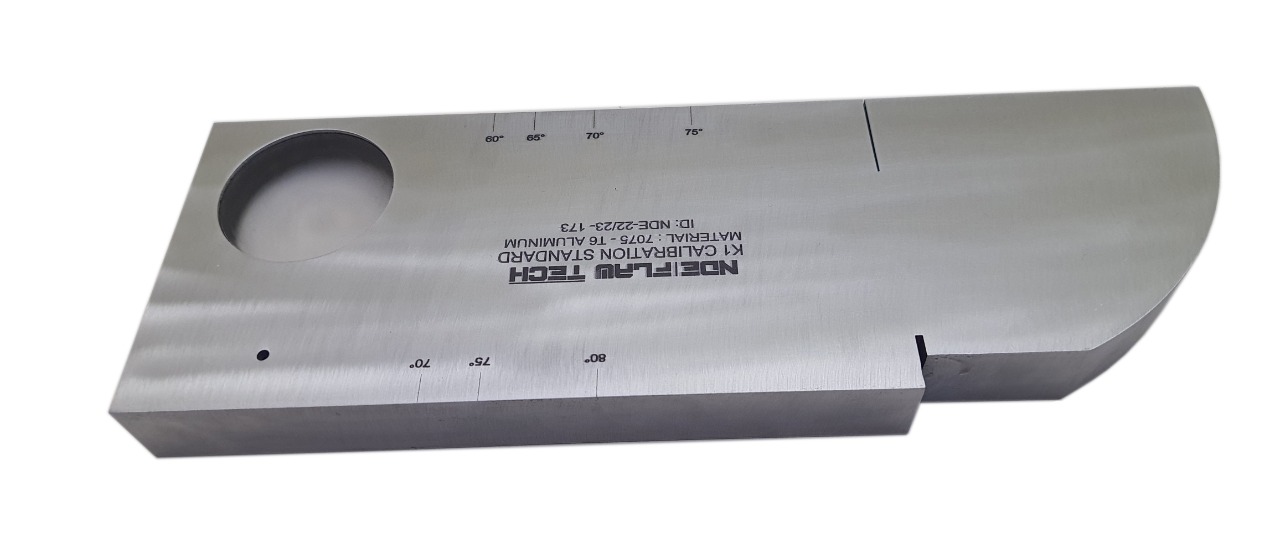

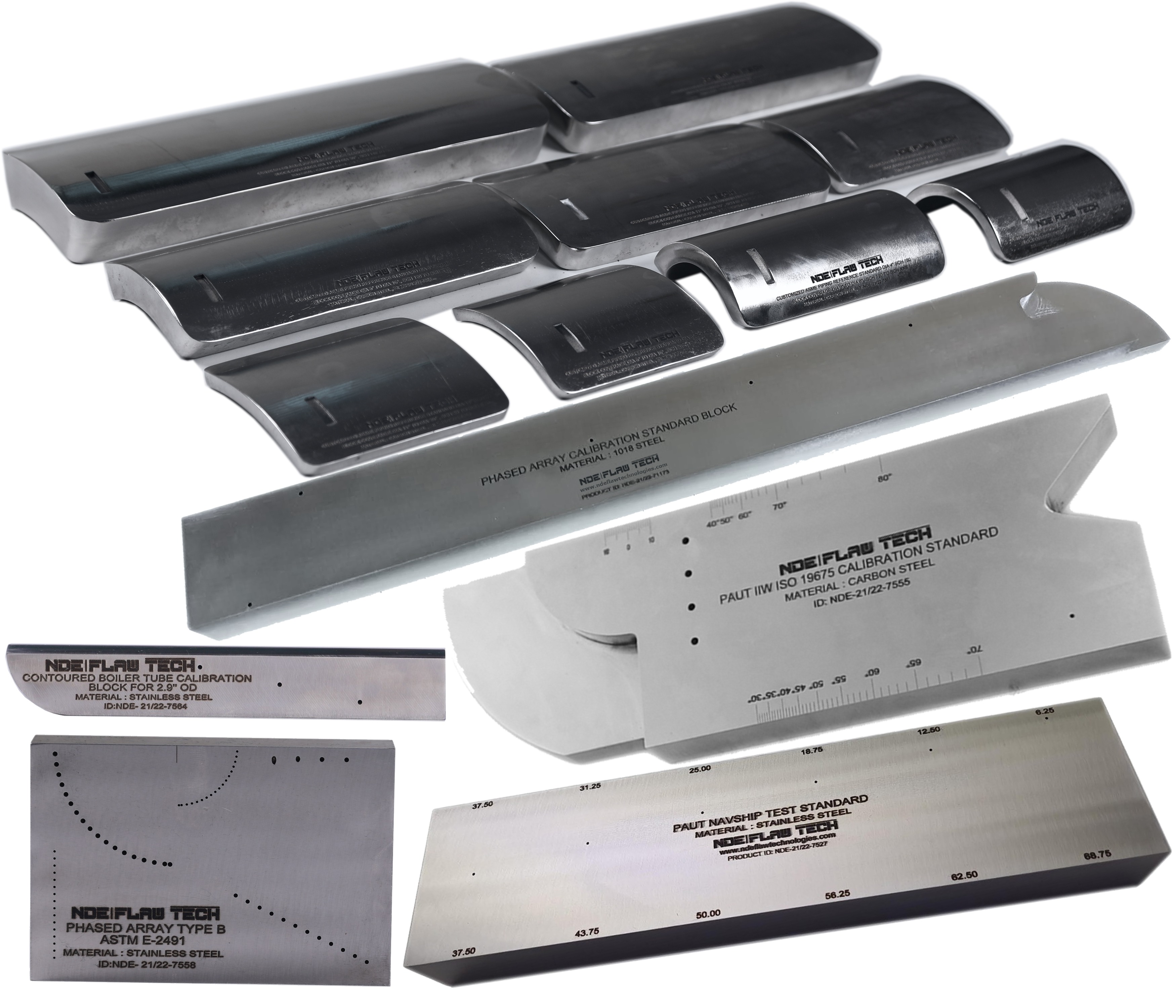

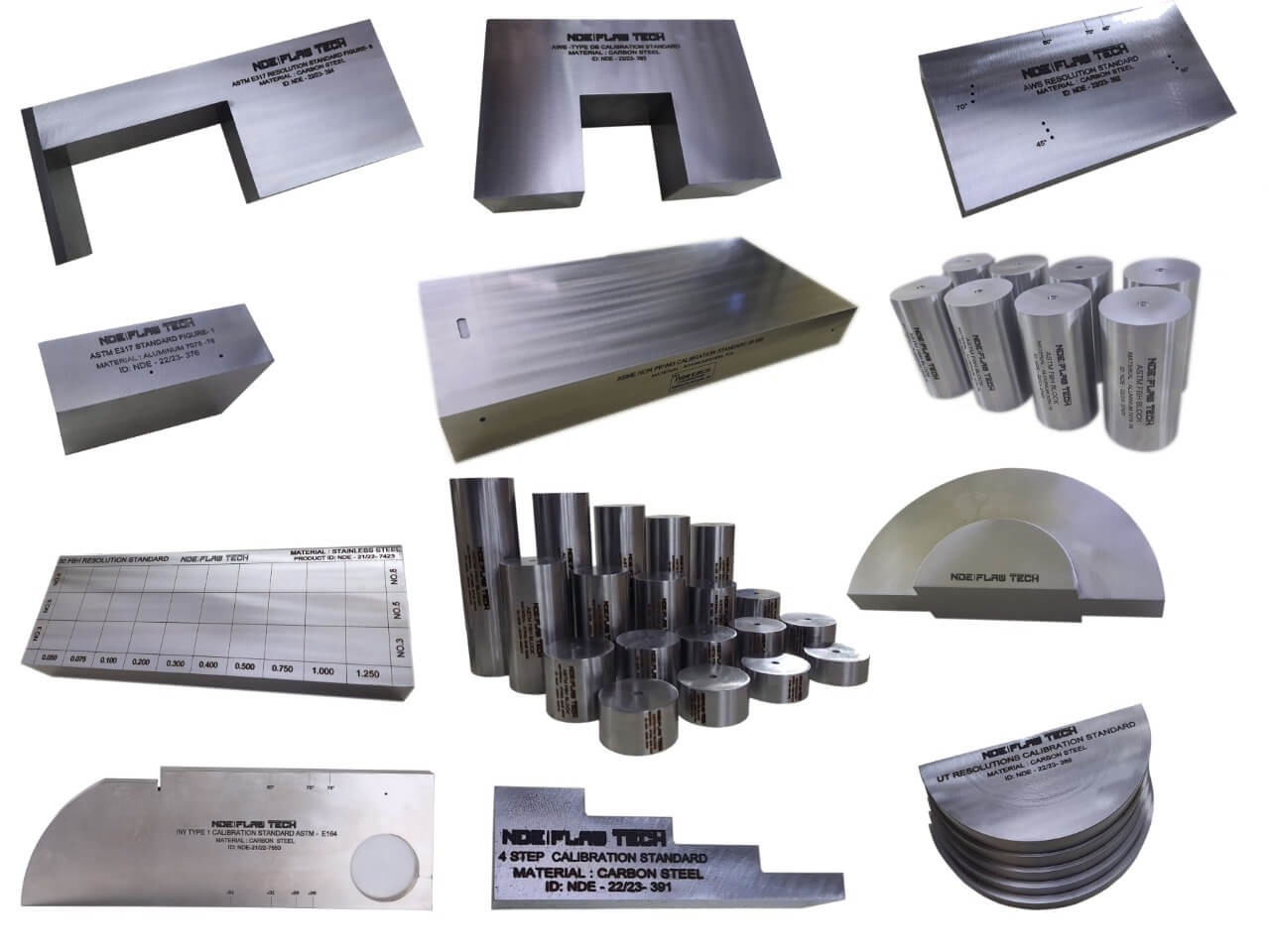

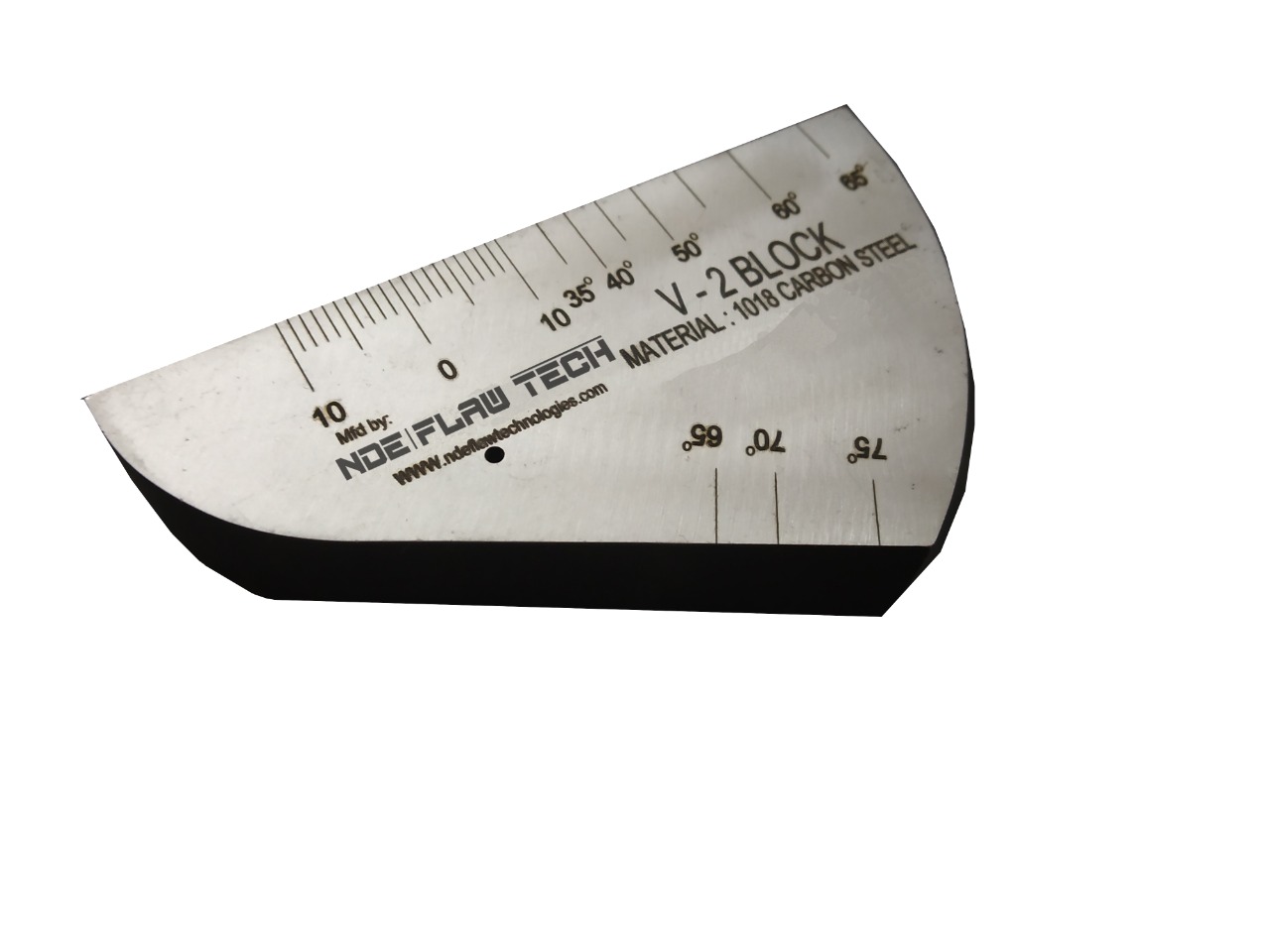

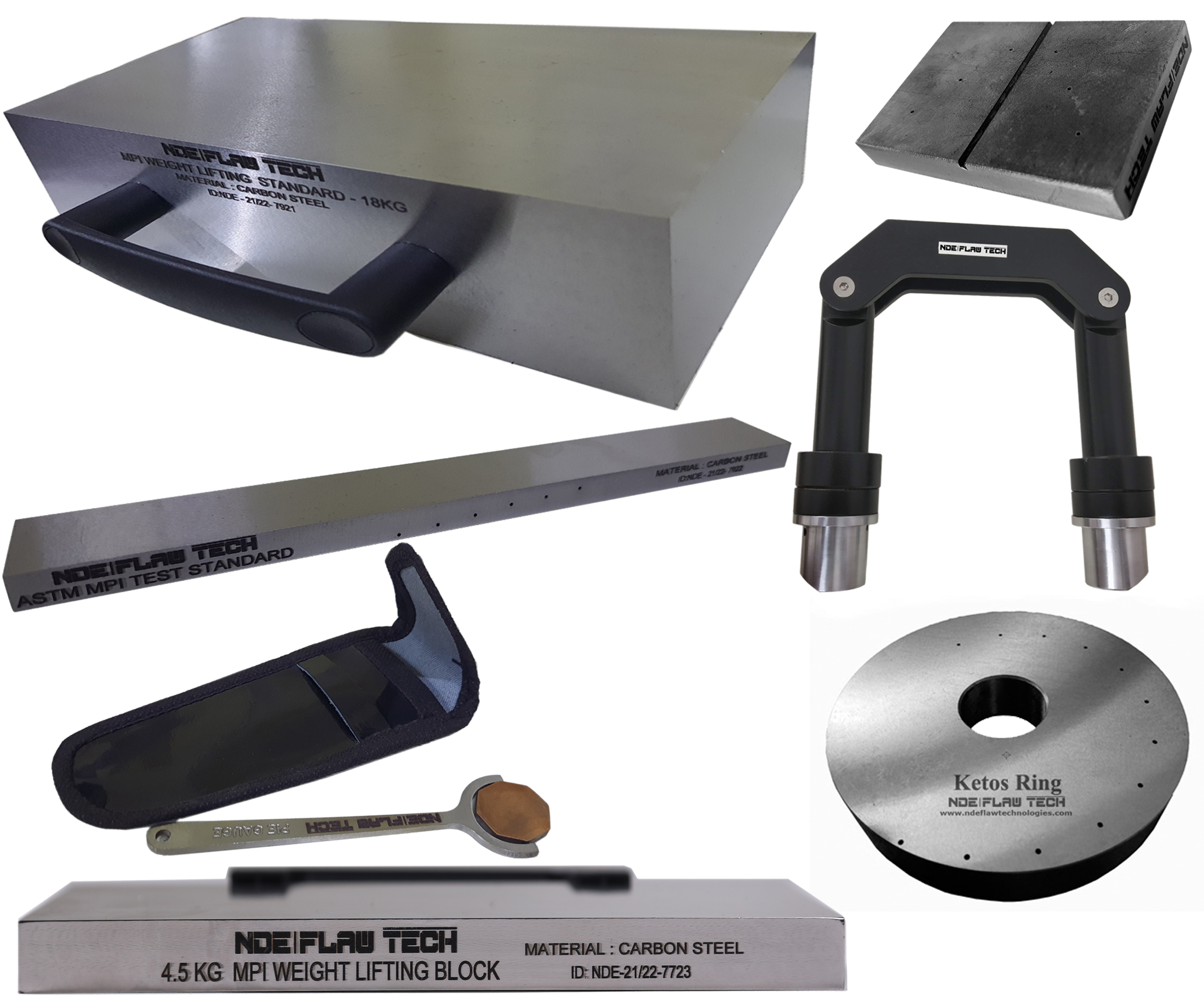

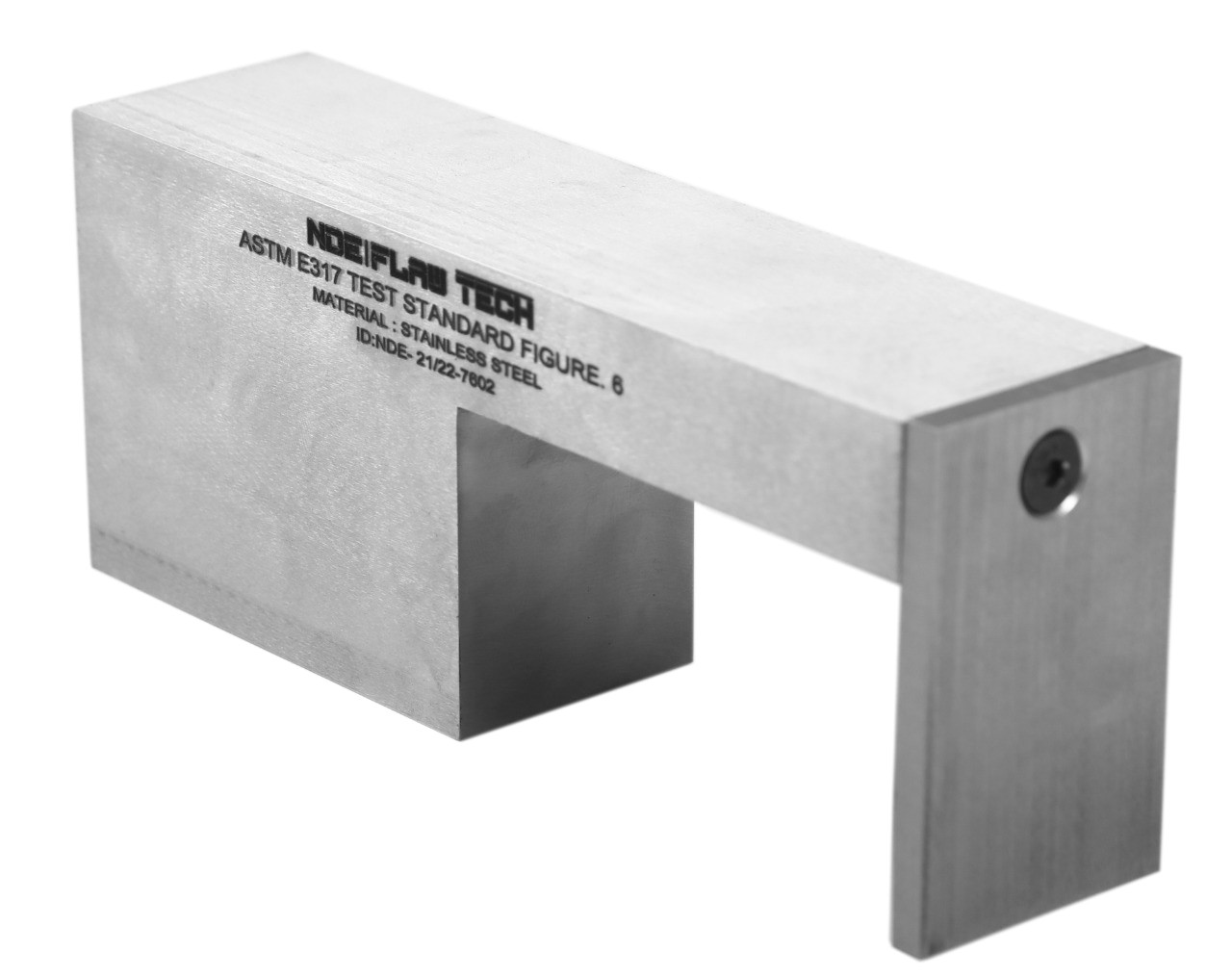

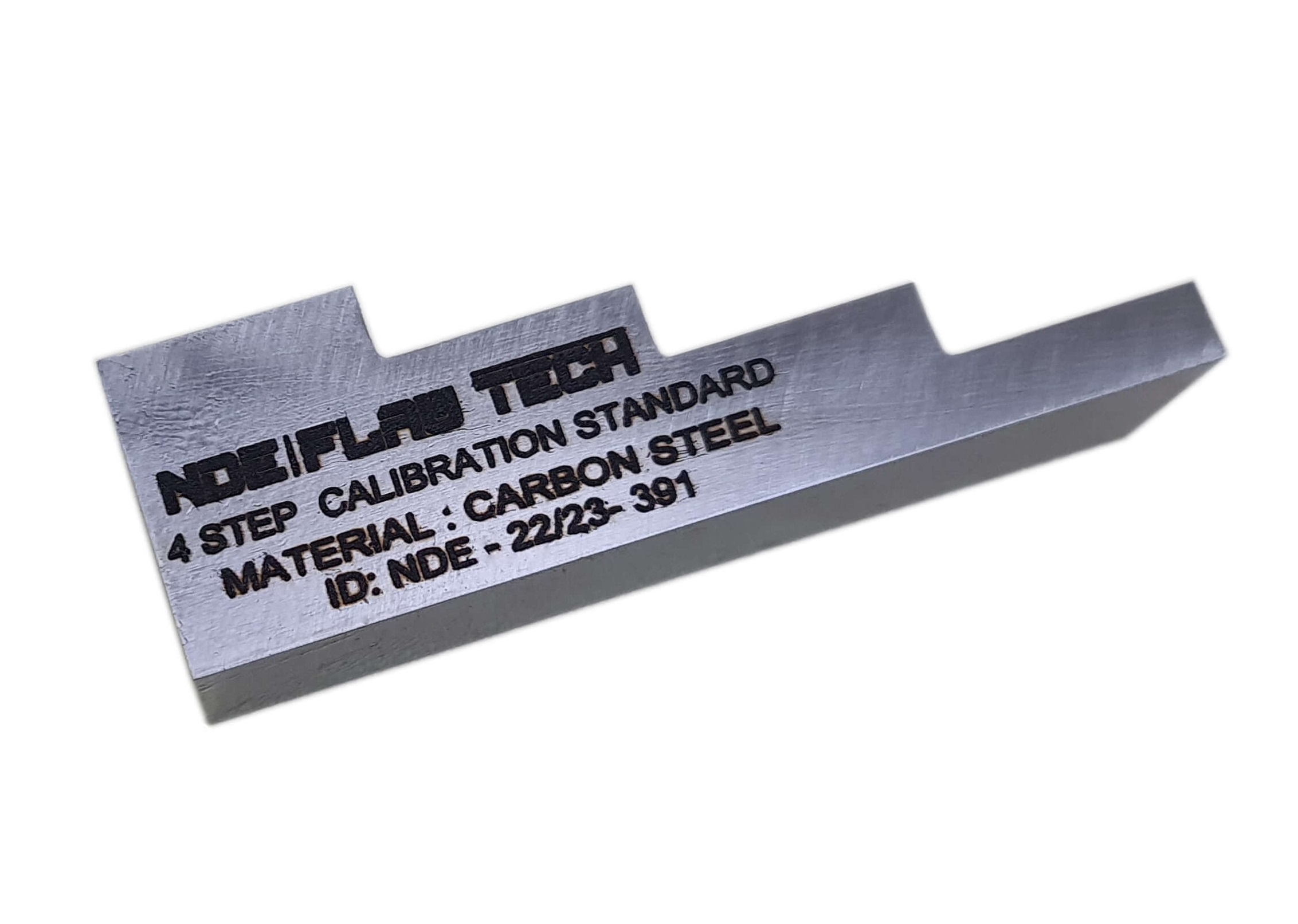

At NDE FLAW TECH, we specialize in the manufacturing of high-precision NDT Calibration and Reference Standards, ensuring unmatched accuracy, reliability, and compliance with global quality standards. Our calibration solutions are designed to serve a diverse range of industries, Unmatched Quality & Innovation in NDT Calibration With years of expertise in Non-Destructive Testing (NDT) & Evaluation (NDE), we have established ourselves as a leading manufacturer of high-precision calibration and reference standards. Our commitment to excellence is reflected. Global Trust & 24/7 Service Commitment : NDE FLAW TECH is a globally recognized brand, supplying high-quality reference standards to industries such as Nuclear, Offshore, Rail, Foundries, and Power Generation. With our 24/7 NDT product service, we ensure uninterrupted support for our customers worldwide. By combining cutting-edge technology, precision craftsmanship, and industry expertise, we continue to be the trusted partner for industries that demand the highest level of accuracy and efficiency in NDT Calibration & Reference Standards. DE FLAW TECH – Setting the Standard for Excellence in NDT Calibration.
GET PREMIUM INDUSTRIAL SERVICES FOR YOUR INSPECTIONS
Fastest Delivery As a supplier, our service will be on time with several levels of delivery service options. Our main goal is to satisfy the customer urgency with finest quality. We are not compromised with the quality before dispatching the product from our organization. Our team will not allow the customers to waiting for product behind the scheduled time.
REAL FLAW vs. ARTIFICAL FLAW Flaw Definitions Intentional weld defect or flaw specimens can be required for training purposes, developing new non- destructive testing techniques, qualifying non-destructive testing procedures, obtaining mechanical property data and in support of safety cases.

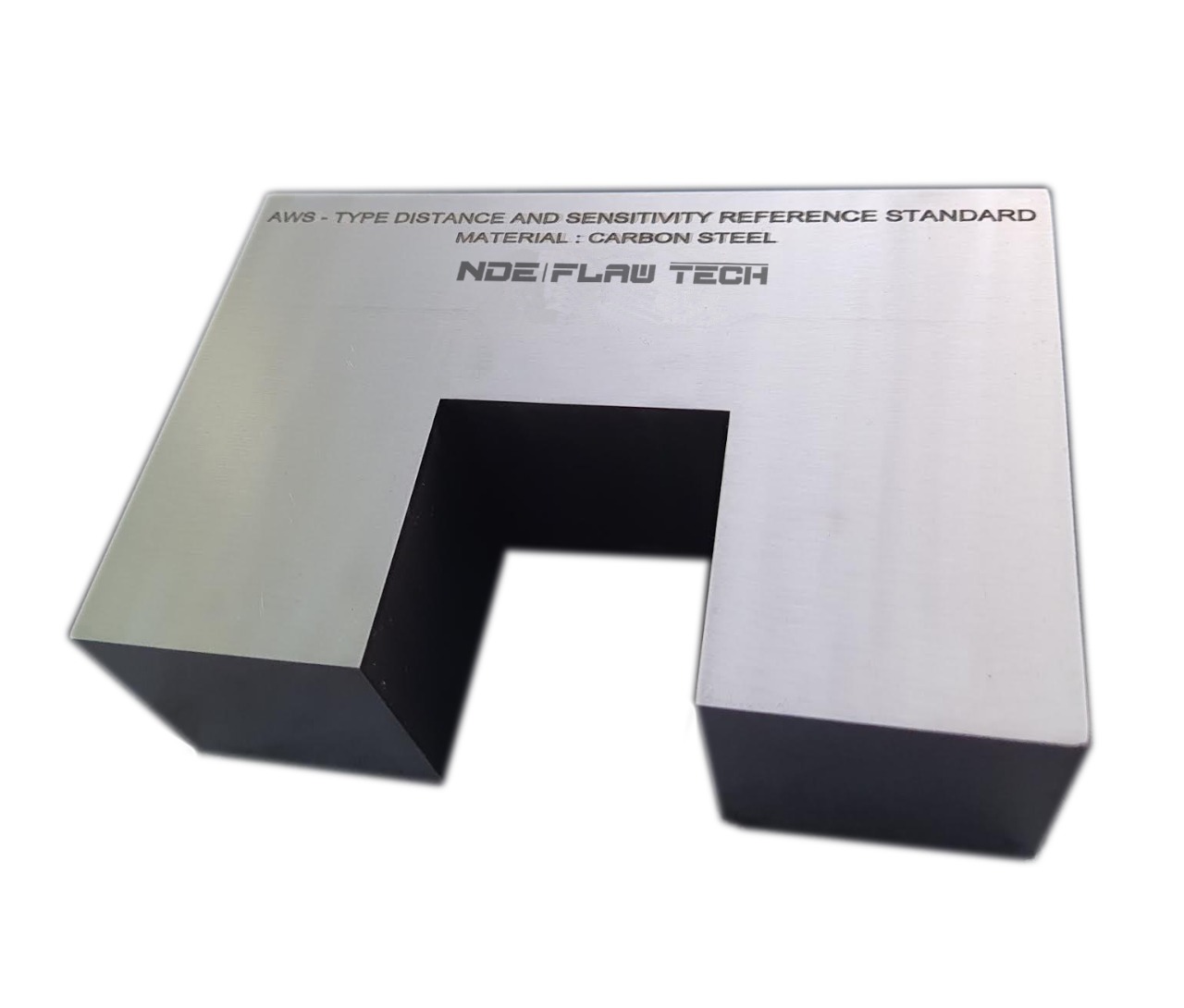

REFERENCE STANDARDS are documented agreements containing technical specifications or other precise criteria to be used consistently as rules, guidelines, or definitions of characteristics, in order to ensure that materials, products, processes, and services are fit for their purpose.

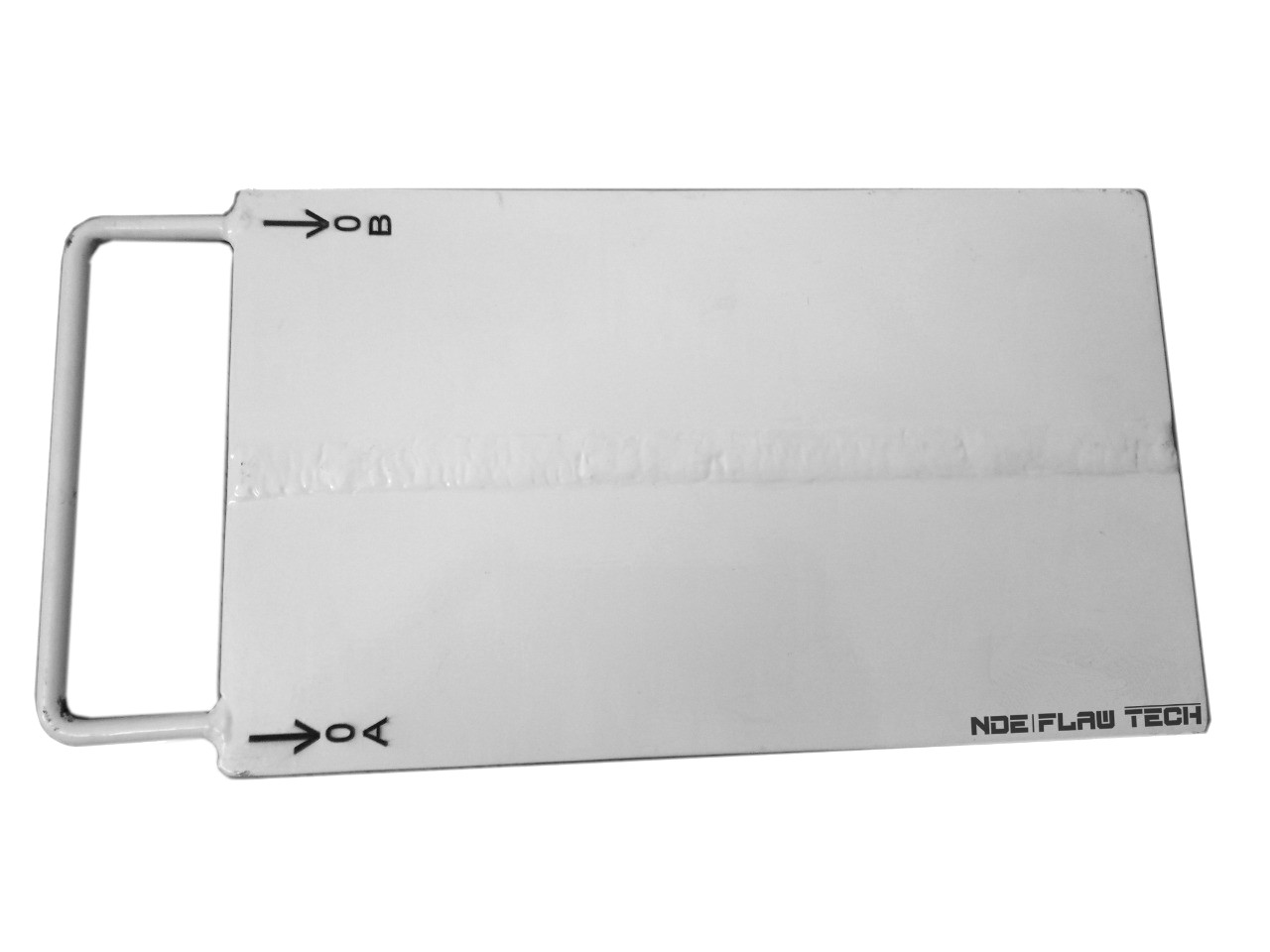

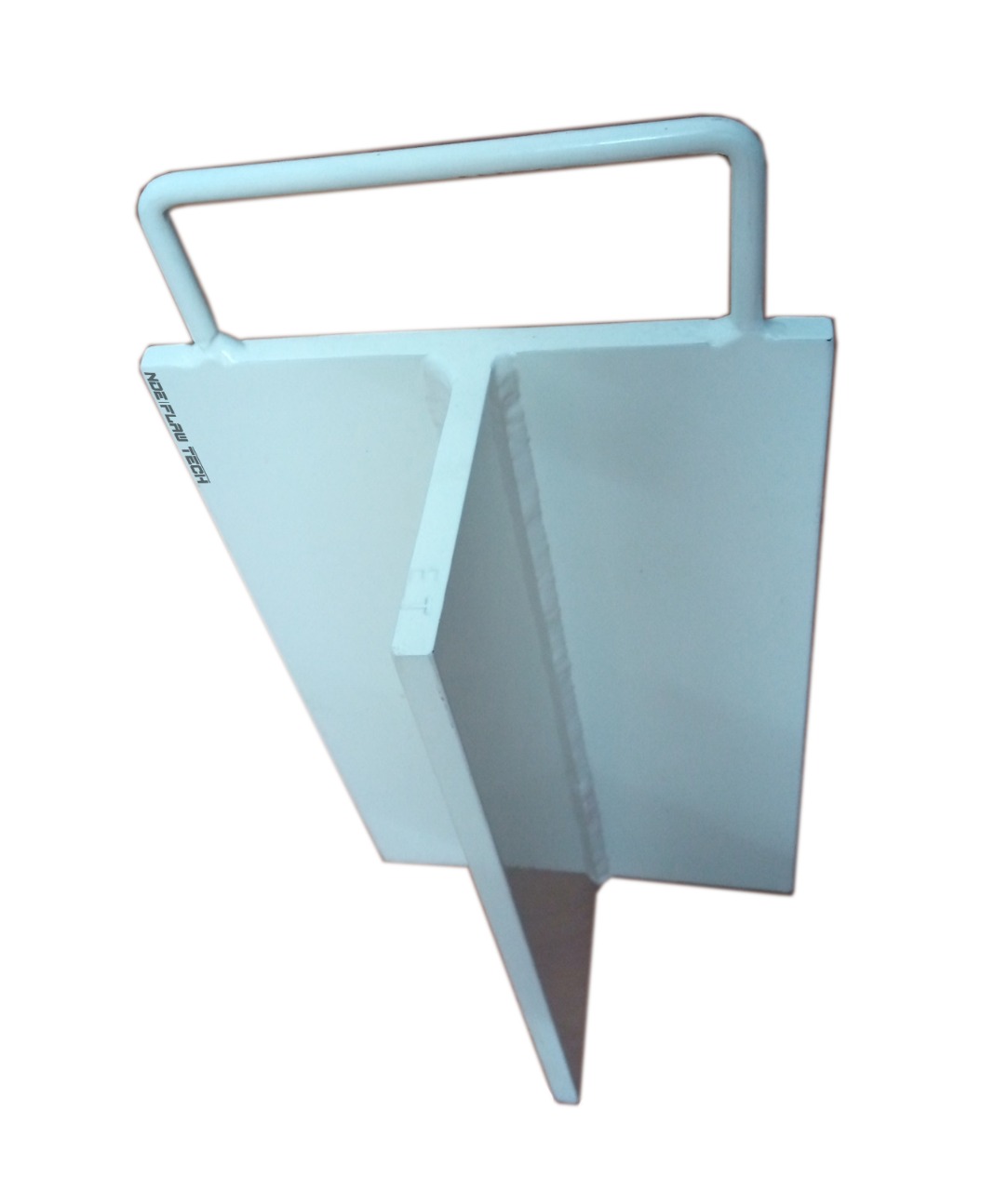

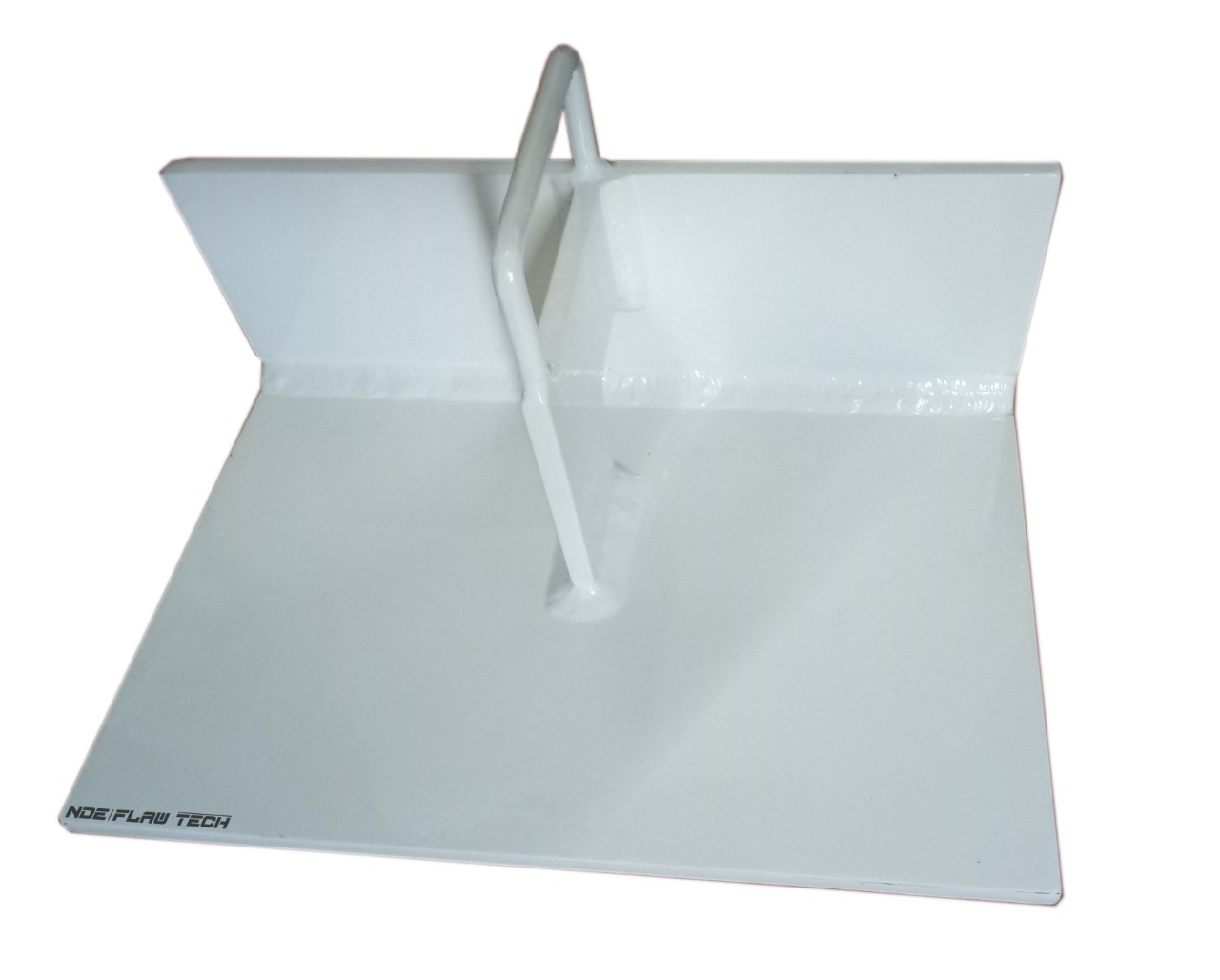

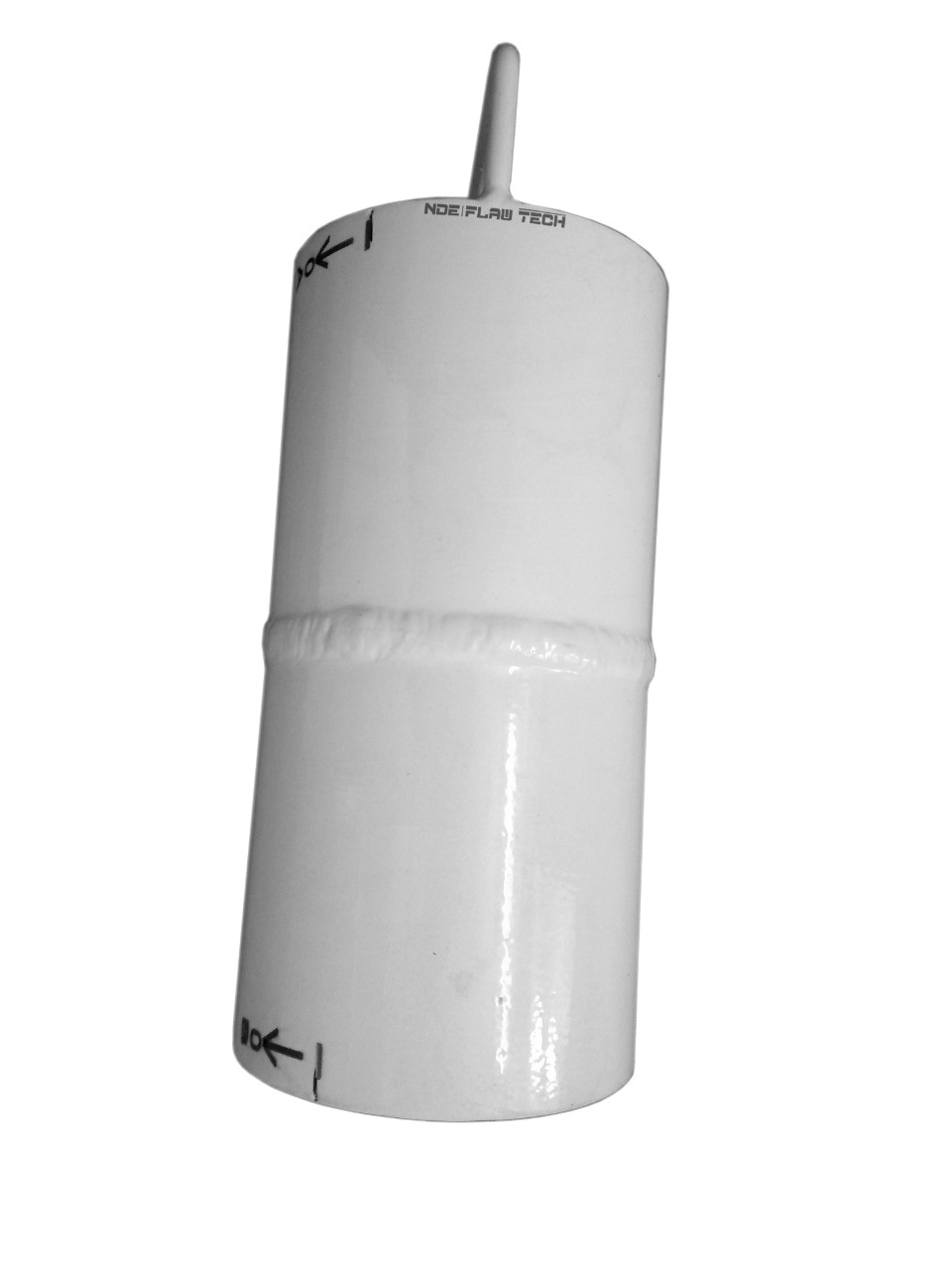

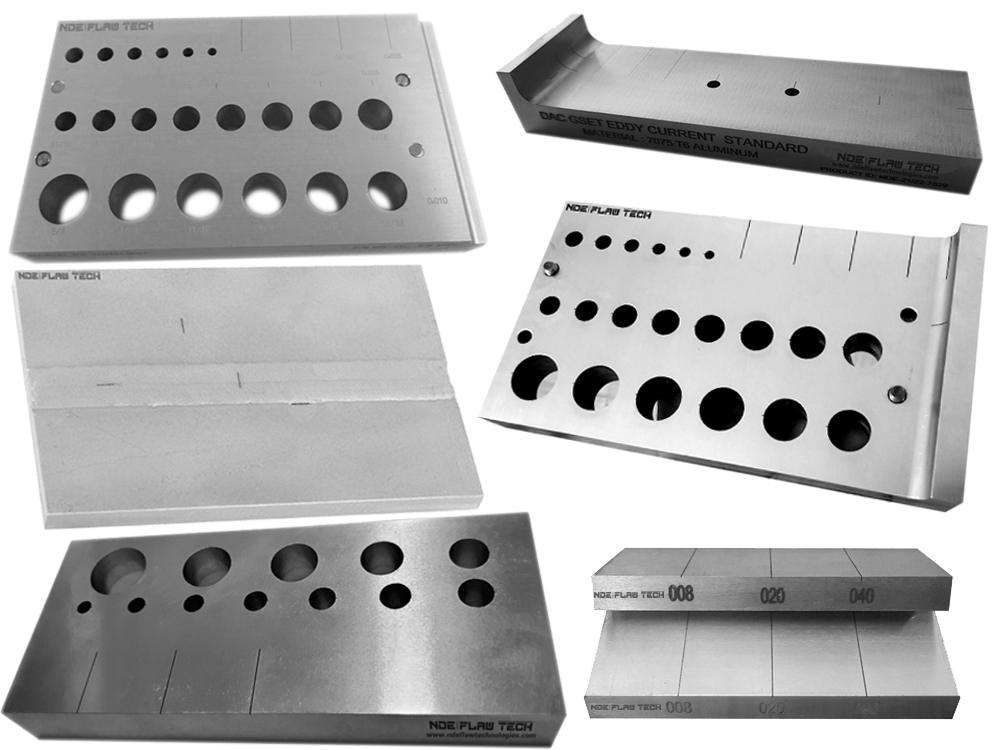

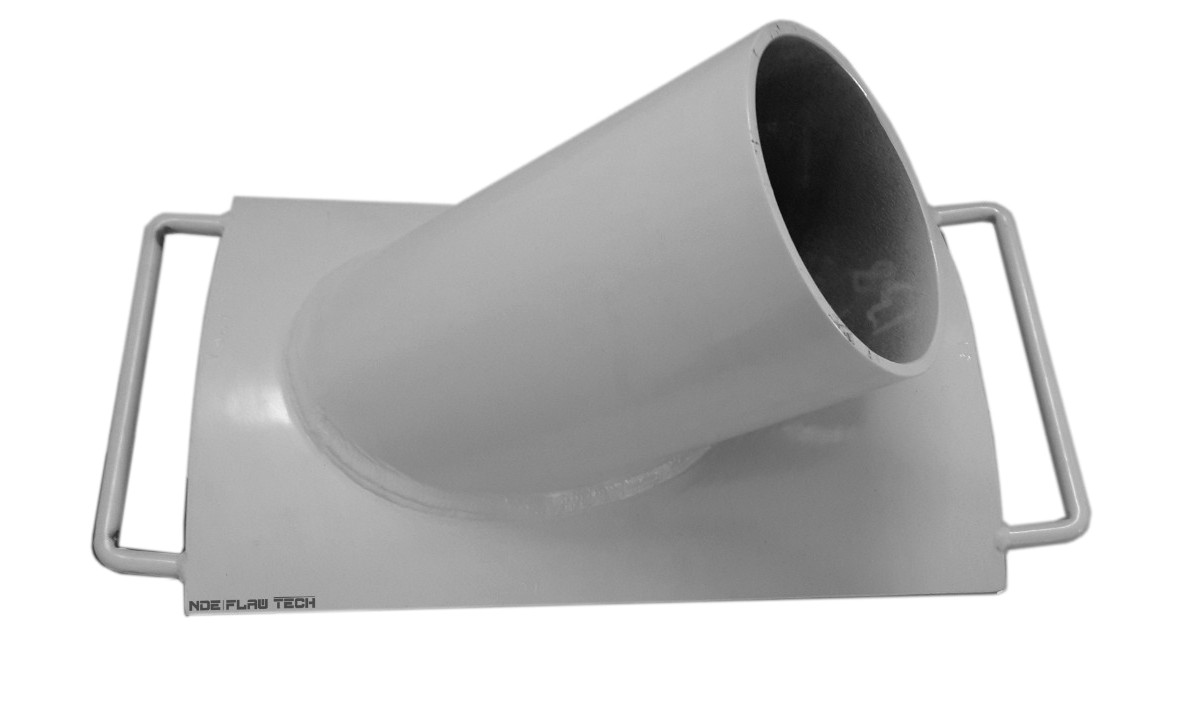

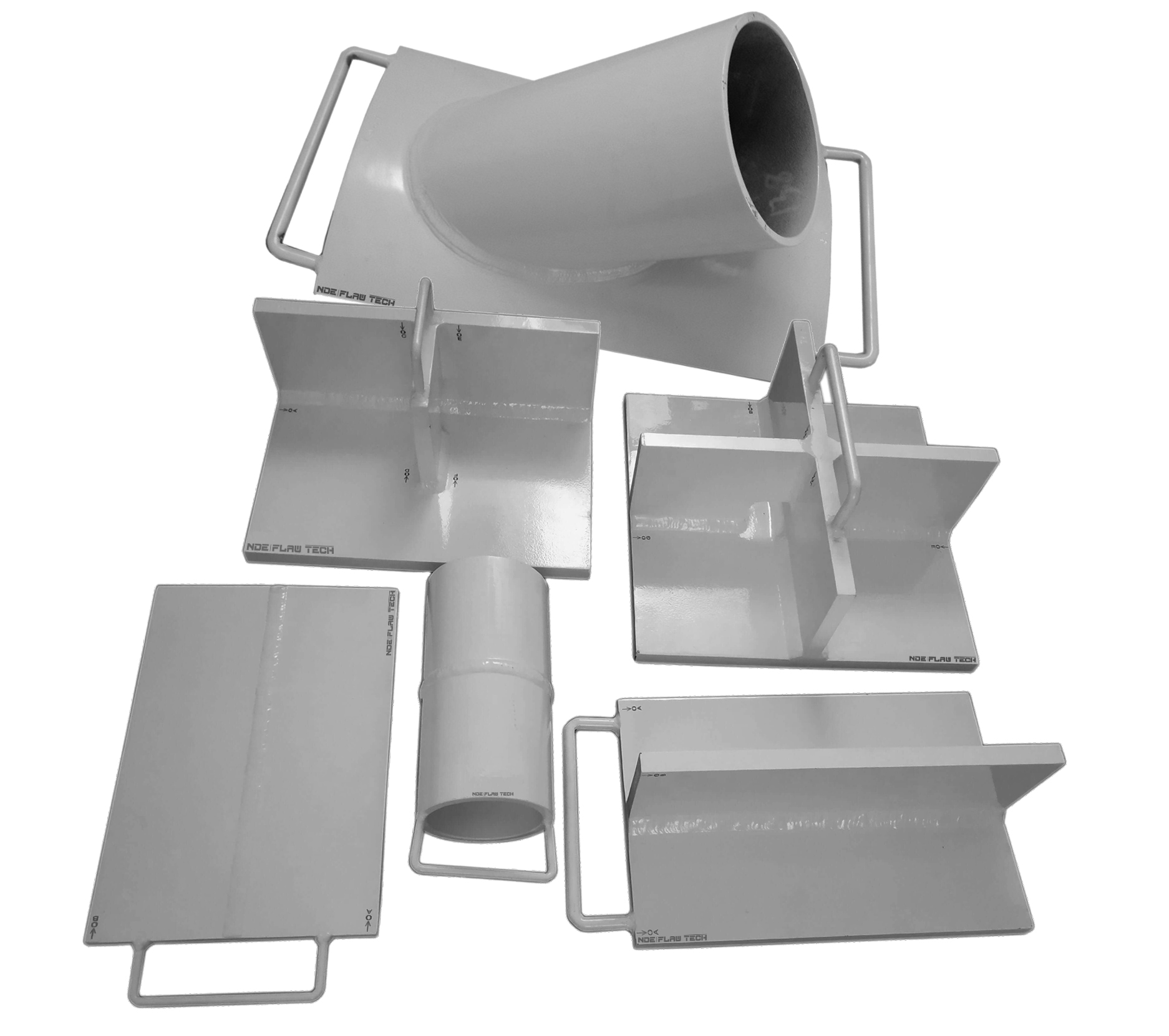

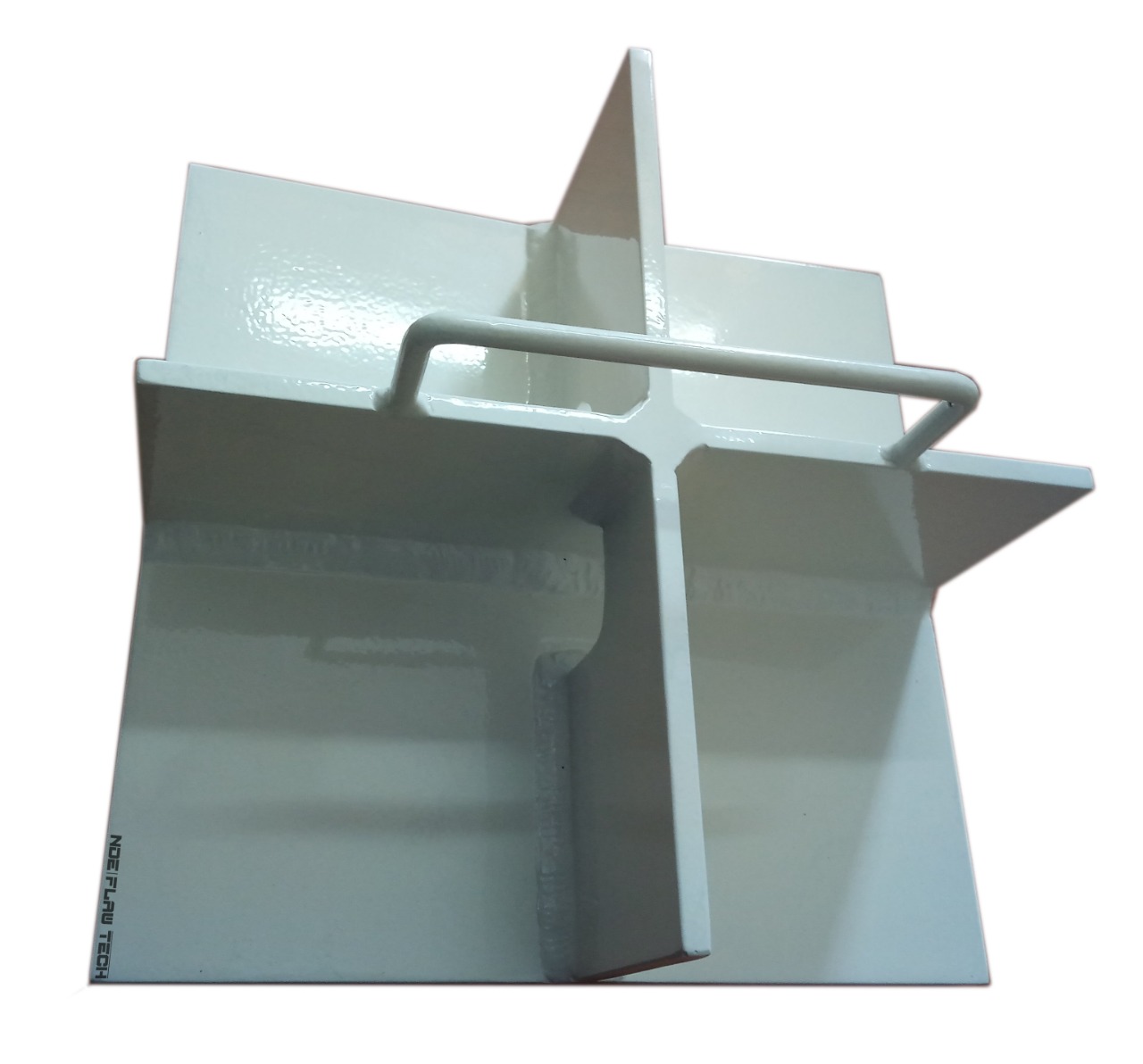

EDDY CURRENT TESTING STANDARDS (Surface) the product is passed through or adjacent to an electrical test coil, which has been excited by an alternating current. This induces a flow of Eddy Currents around the test material or in the case of a sector coil, in the area under the coil.
EDDY CURRENT TUBE STANDARDS Eddy current inspection is often used to detect corrosion, erosion, cracking and other changes in tubing. Heat exchangers and steam generators, which are used in power plants, have thousands of tubes that must be prevented from leaking.

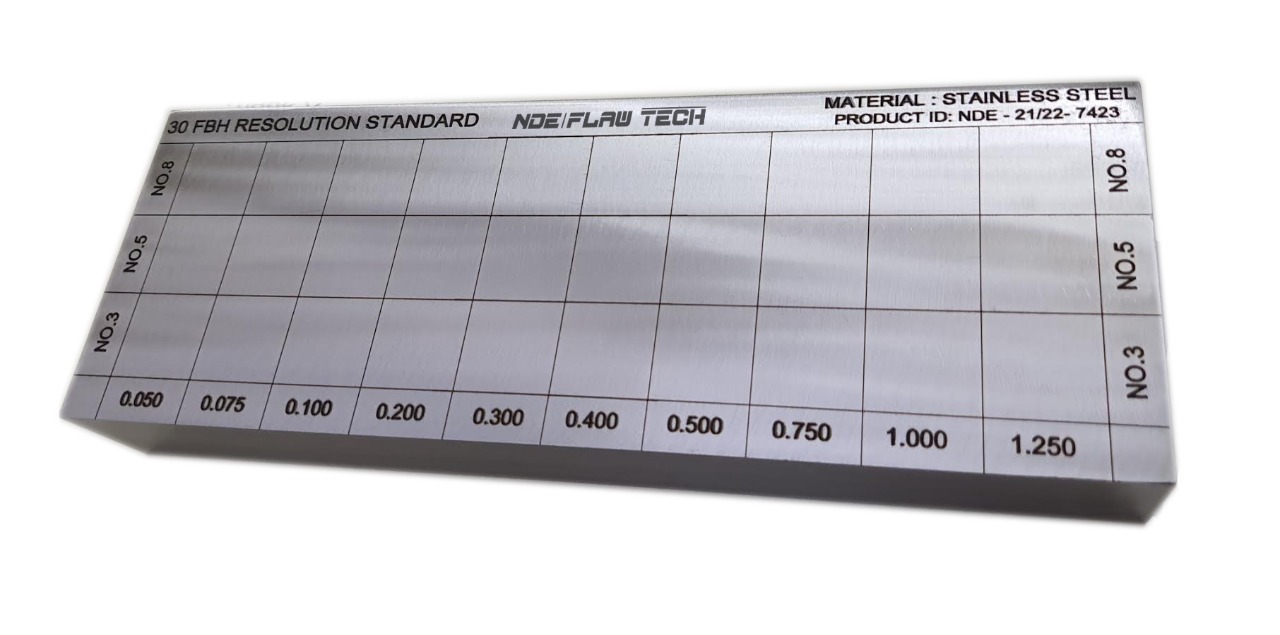

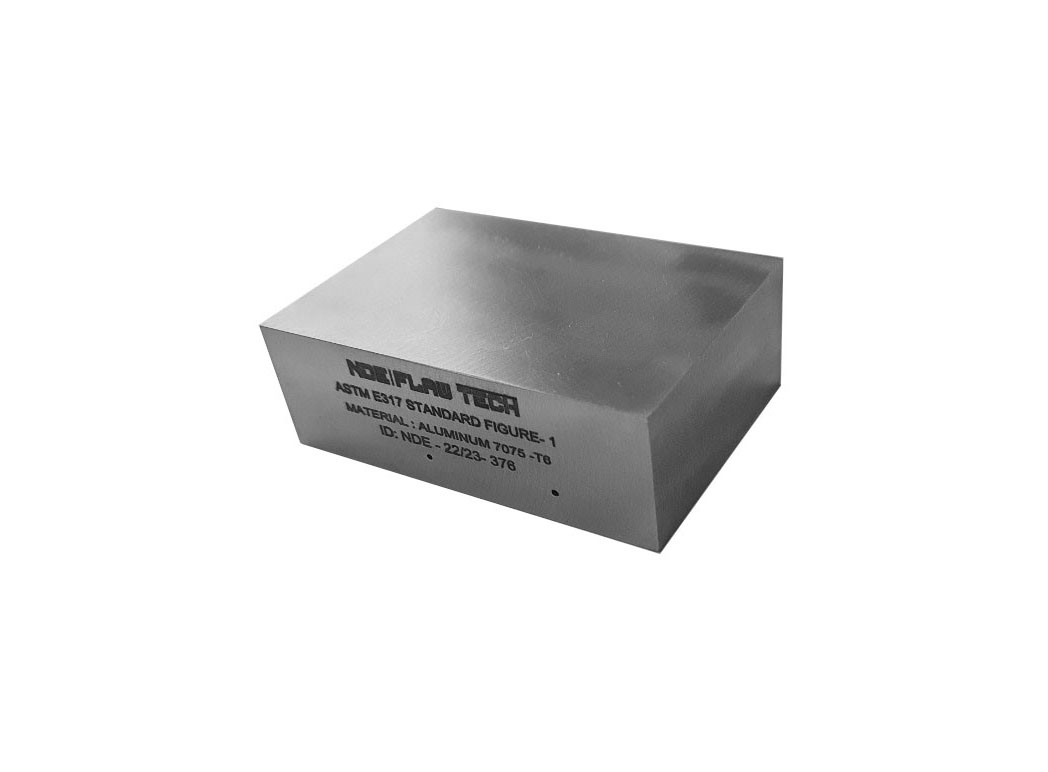

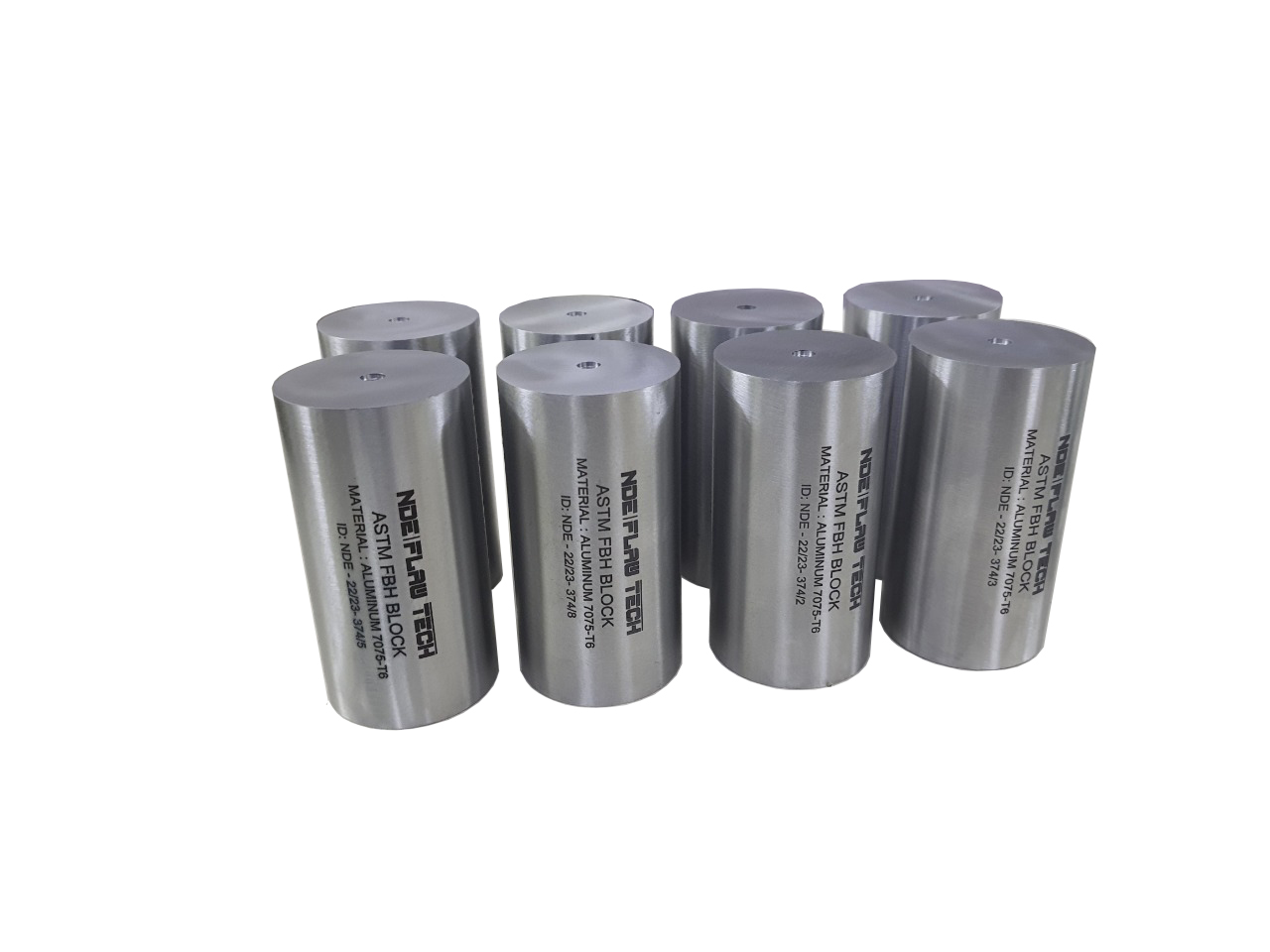

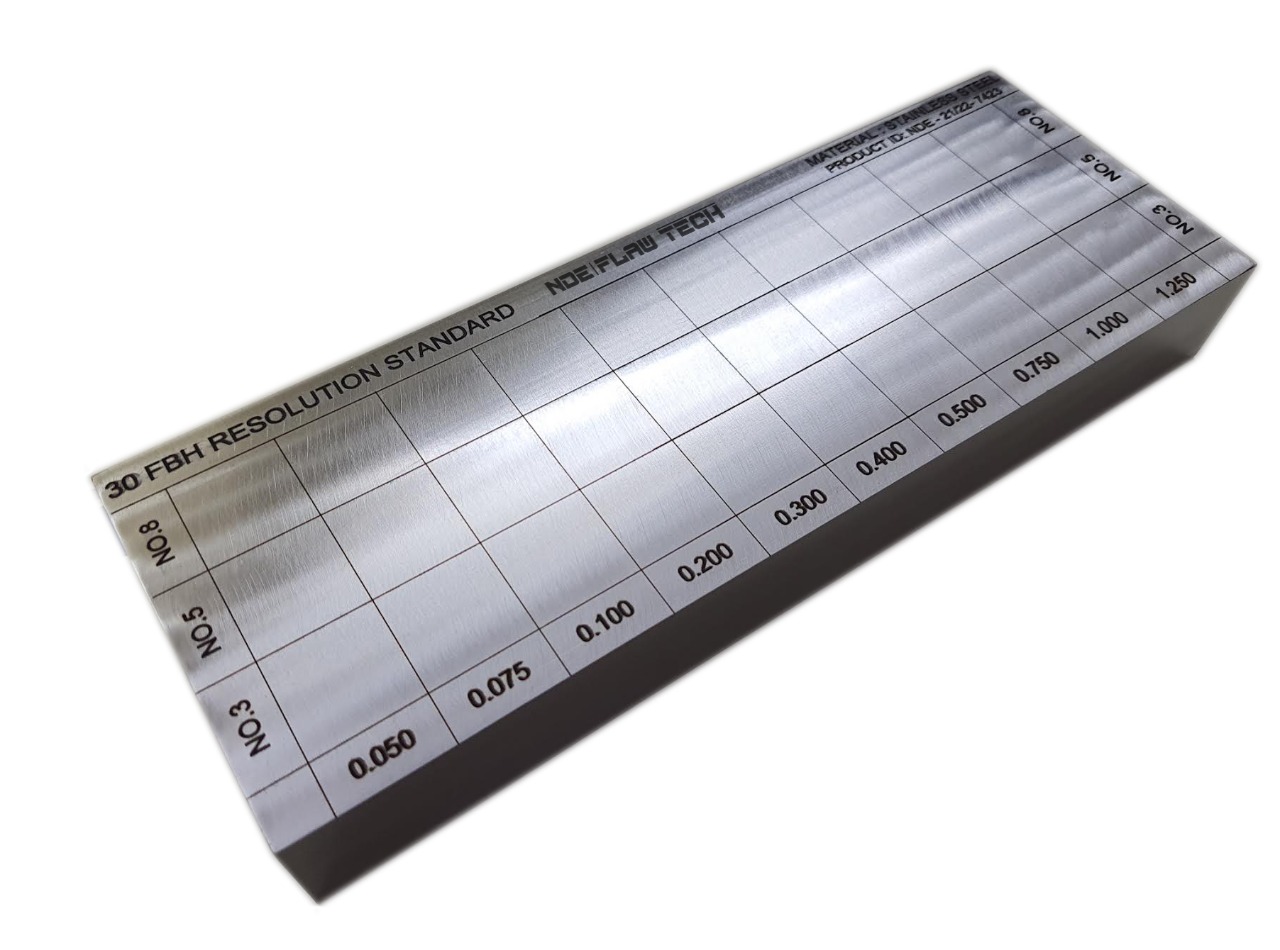

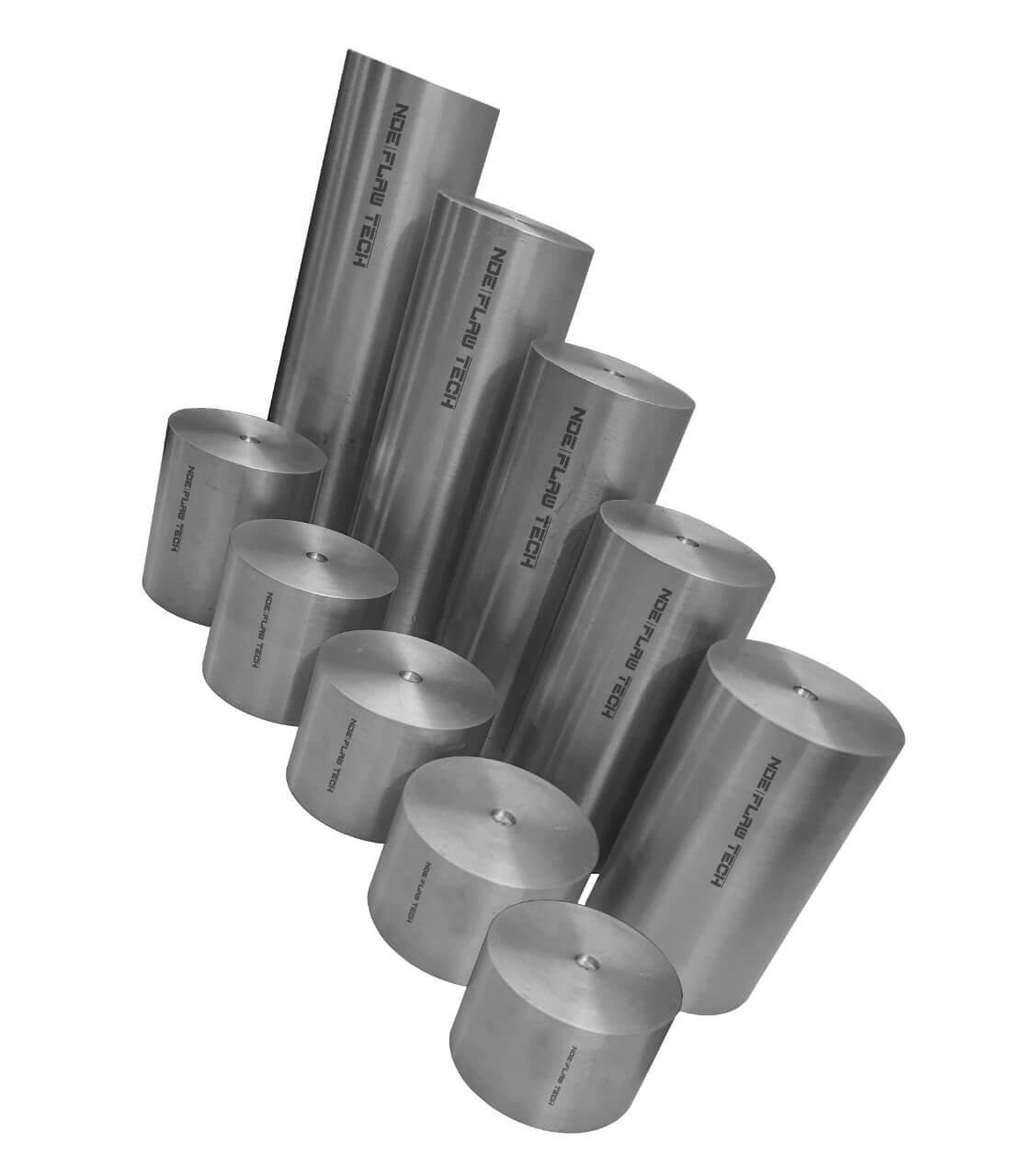

IMPORTANCE OF FLAT BOTTOM HOLES (FBH) and SIDE DRILLED HOLE (SDH) Flat-bottom-hole reference blocks have been used as defect artifact standards in nondestructive testing for many years. Hole making process can be employed by both conventional machining (drilling) and non-conventional machining (EDM).

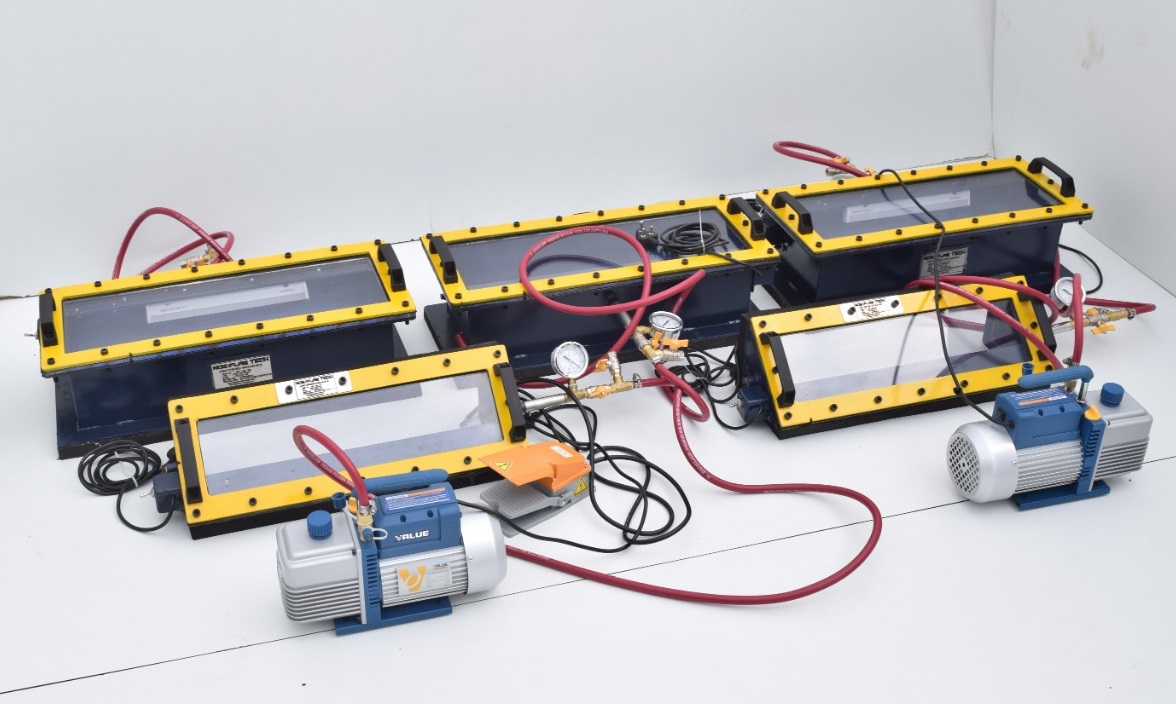

VACCUM BOX INSPECTION KIT Vacuum box testing is a non-destructive examination (NDE/NDT) used for locating welding leaks. A vacuum box and a compressor create a high or low-pressure vacuum and a detergent solution is applied to the test area. The detergent bubbles help to identify the leaks within the created pressure envelope.

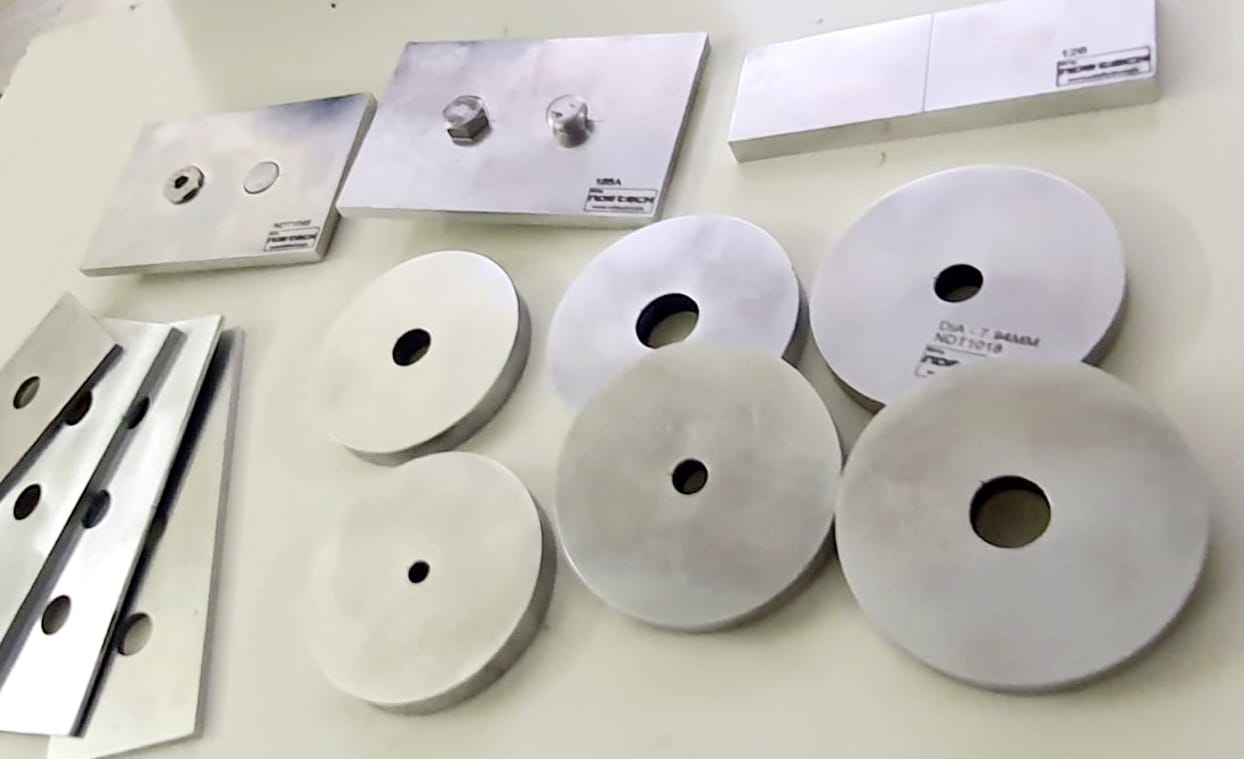

Reference Standards for Aerospace Industry CALIBRATION BLOCK IN AEROSPACE NDE FLAW TECHNOLOGIES PVT.LTD. plays a major role in aerospace industries. We are specialized in manufacturing of calibration blocks for aerospace industries in accordance with Non-Destructive Testing manual of Boeing, Airbus, ATR etc., our team was well expert in customized calibration block as per the requirement of aerospace component.
IMPORTANCE OF CALIBRATION AND TRACEABILITY Calibration is a comparison between a known measurement (the standard) and the measurement using your instrument. Typically, the accuracy of the standard should be ten times the accuracy of the measuring device being tested. However, an accuracy ratio of 3:1 is acceptable by most standards organizations.
IMPORTANCE OF REPLICA SAMPLES BASIC PRINCIPLE OF REPLICA: Non-destructive metallography of surfaces makes it possible to analyses a material microstructure and a surface condition as well as various surface damages occurring due to overloading or improper tribological circumstances. Machine or tool parts inspected are not damaged during the surface preparation.
HIGH TEMPERATURE HYDROGEN CRACK INTRODUCTION: High temperature hydrogen crack (HTHC), also called hot hydrogen crack, is a problem which concerns steels operating at elevated temperatures (typically above 400°C) in hydrogen environments, in refinery, petrochemical and other chemical facilities and, possibly, high pressure steam boilers.
NDT REFERENCE STANDARD BEARING INDUSTRIES A bearing is a mechanical unit that provides a mobile link between two parts that rotate in relation to one another. Its function is to permit relative rotation of these parts, under load, with accuracy and minimum friction.
STRESS CORROSION CRACK The mechanism of stress corrosion cracking (SCC) involves a very complicated sequence of corrosion and fracture. It has been shown that, for some materials, fine pitting is needed to start the activity. Further progress is then a process alternating between corrosion and mechanical cracking until the material fails completely.

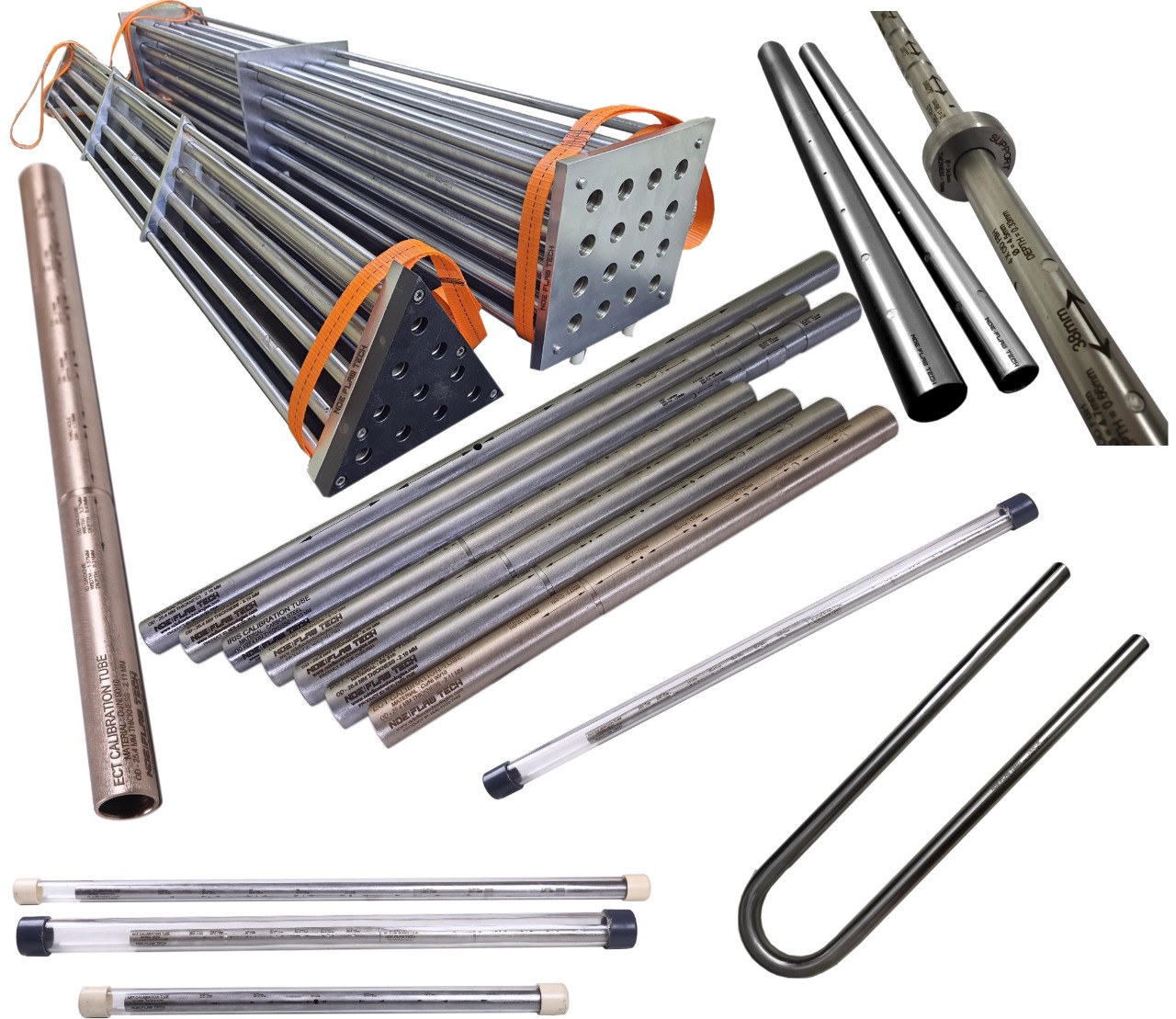

OUR TUBE STANDARDS FOR-ECT, RFT, NFT, MFL, IRIS, NFA Eddy Current Testing (ECT) works on the principle of electromagnetic induction. In ECT a probe is excited with sinusoidal alternating current to induce eddy current in an electrically conducting material such as stainless steel, aluminum etc.
FIN TUBES We are manufacturing fin tubes as per the standard of ASME SEC VIII and API 661 requirement with flaw for Non Destructive Testing. The flawed fin tubes are used to set the Non Destructive Testing equipment prior to work on the examination. The ASME Code Section VIII Div.1 and API 661 requirements normally are used for inspection and test plan for fin tube.

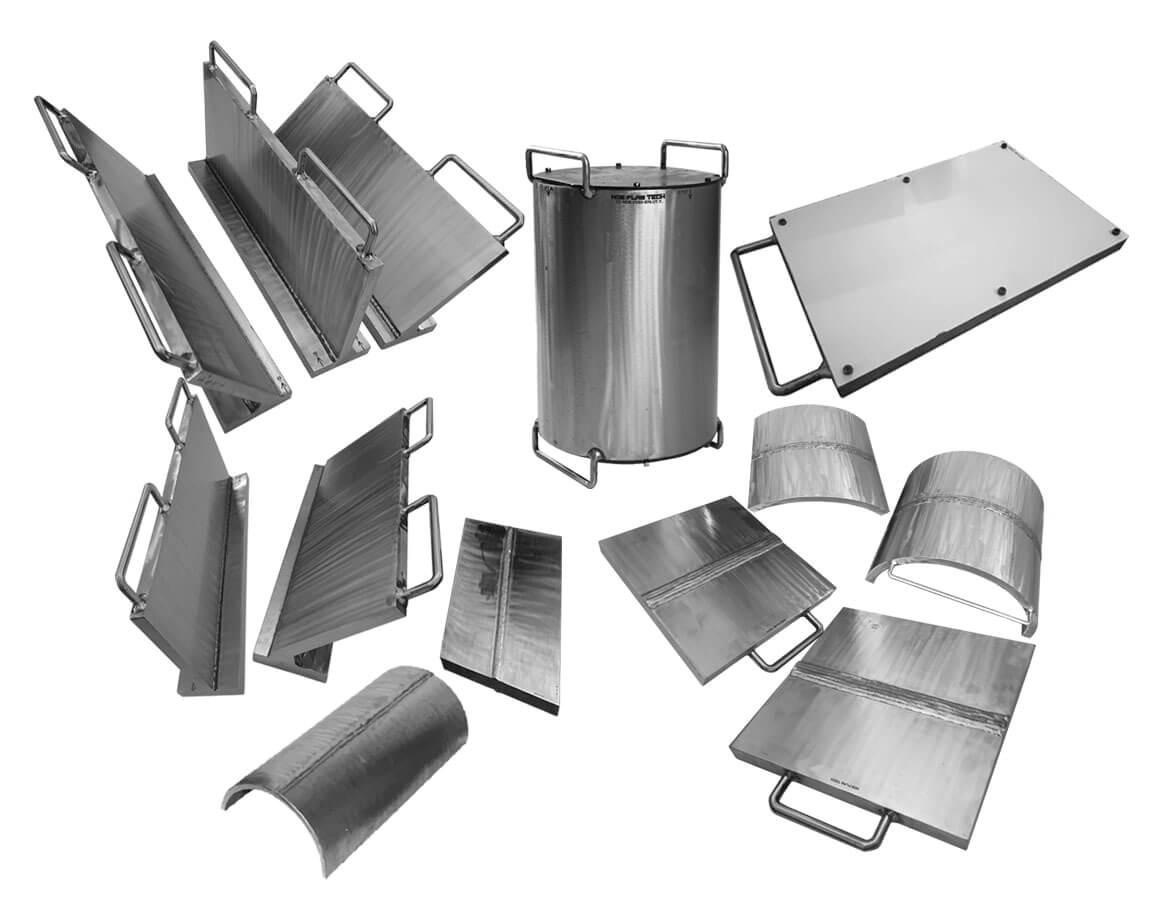

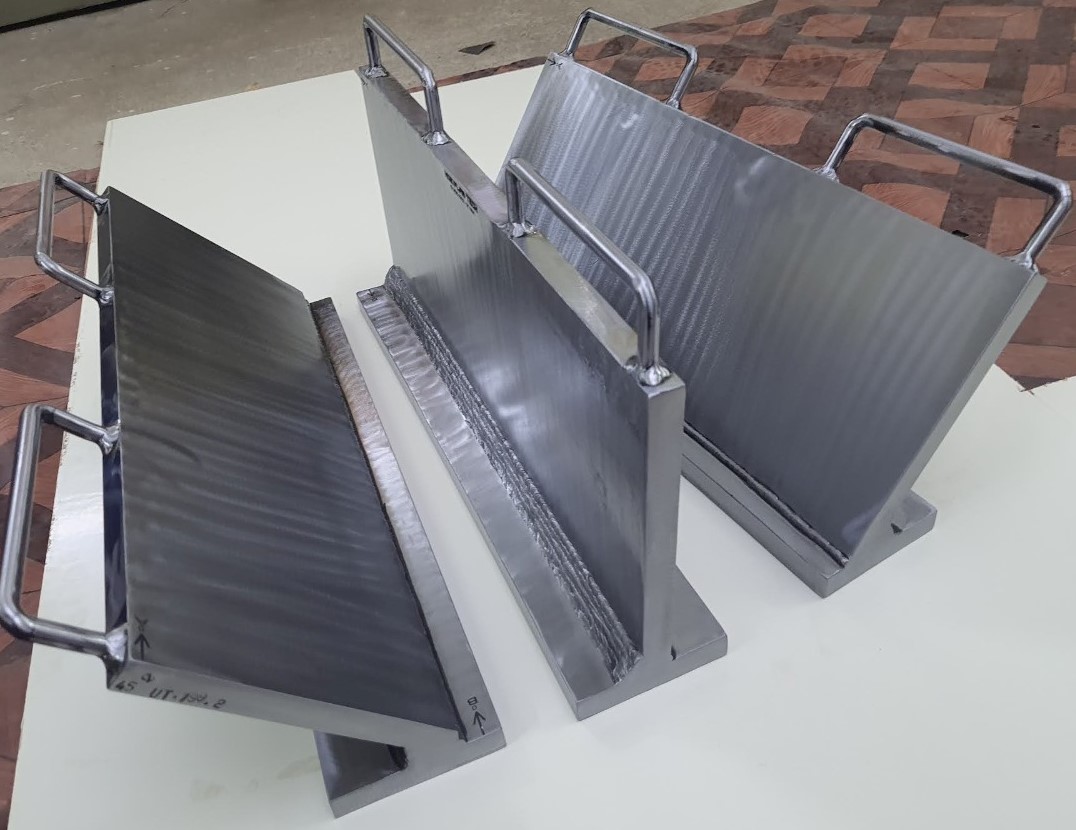

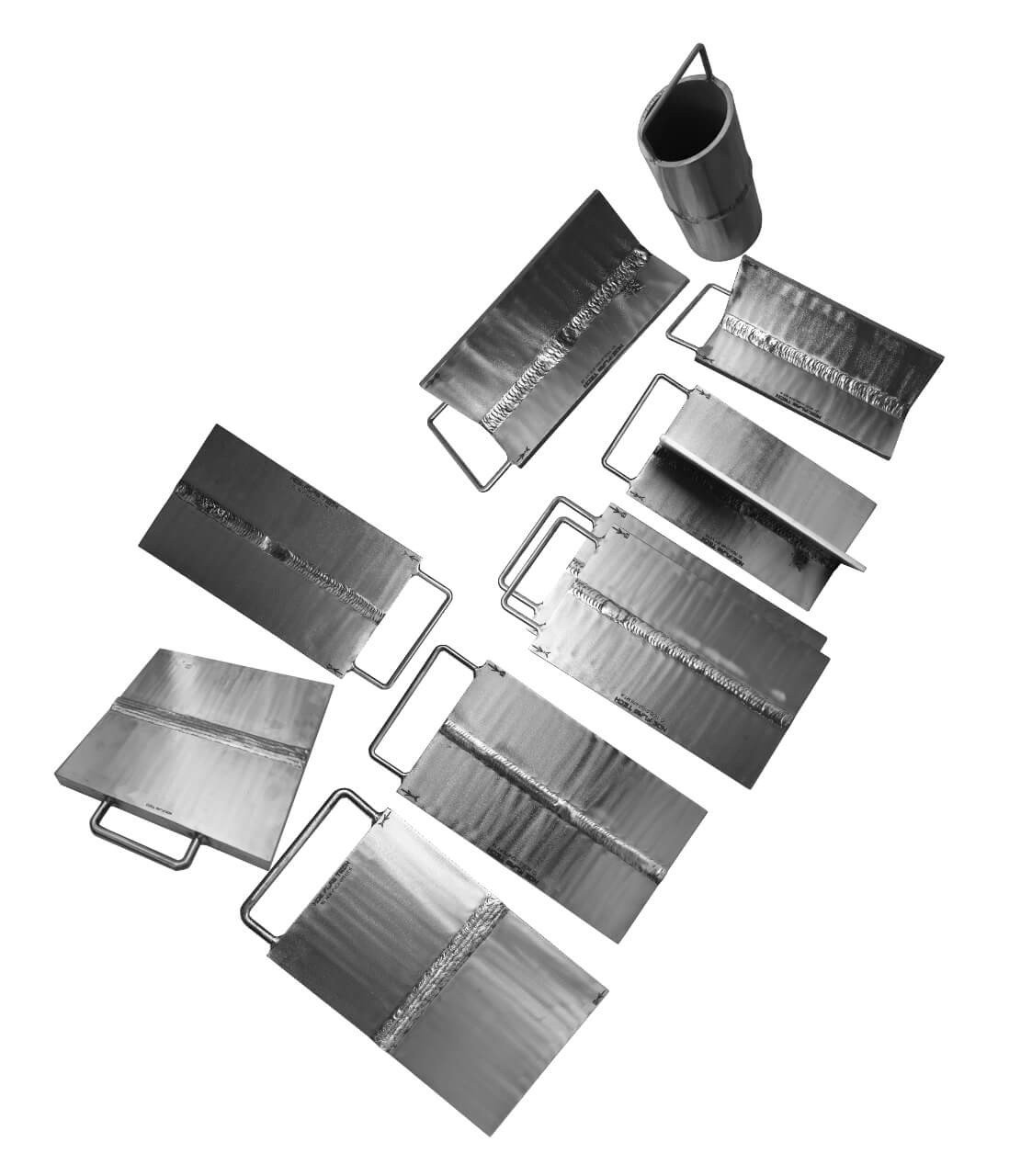

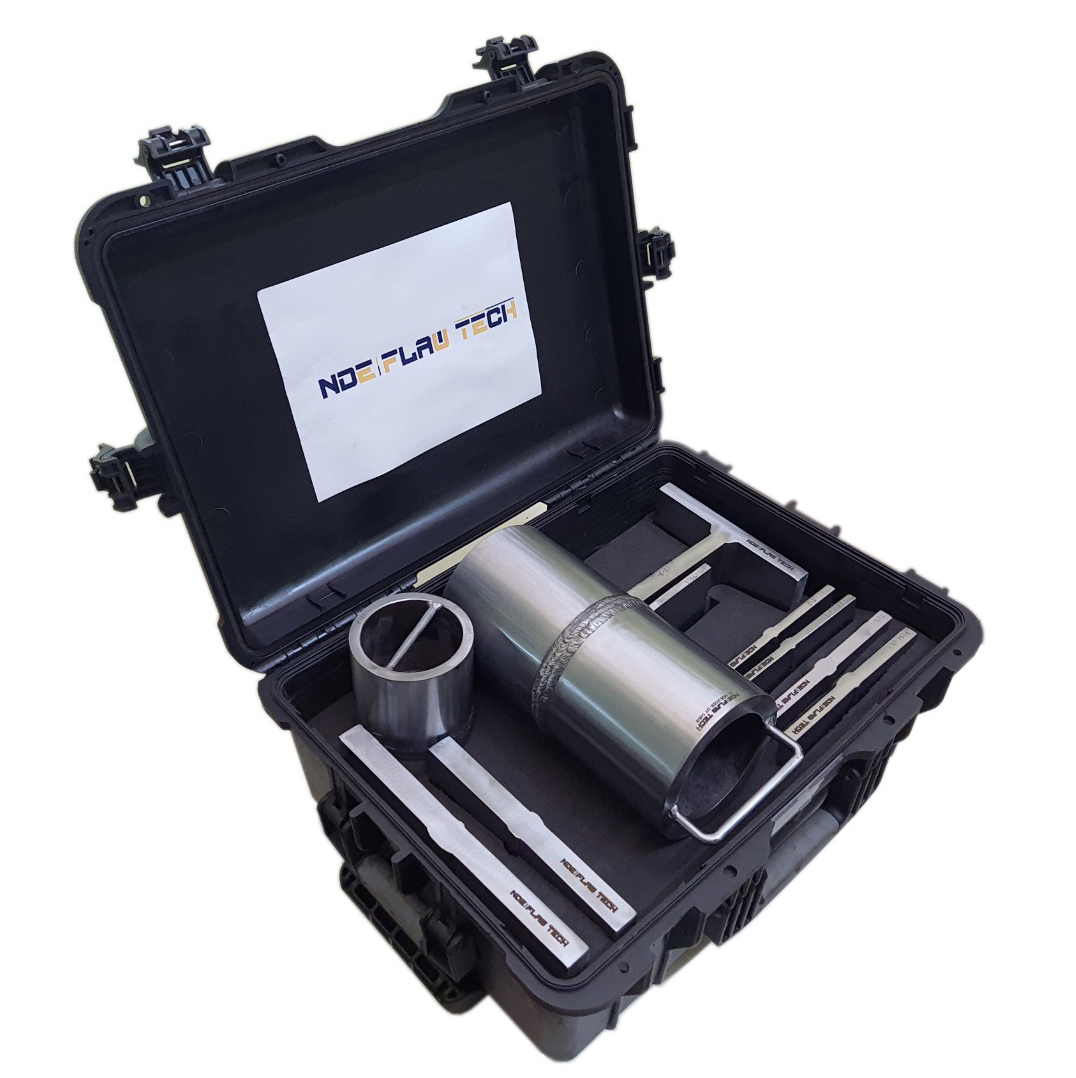

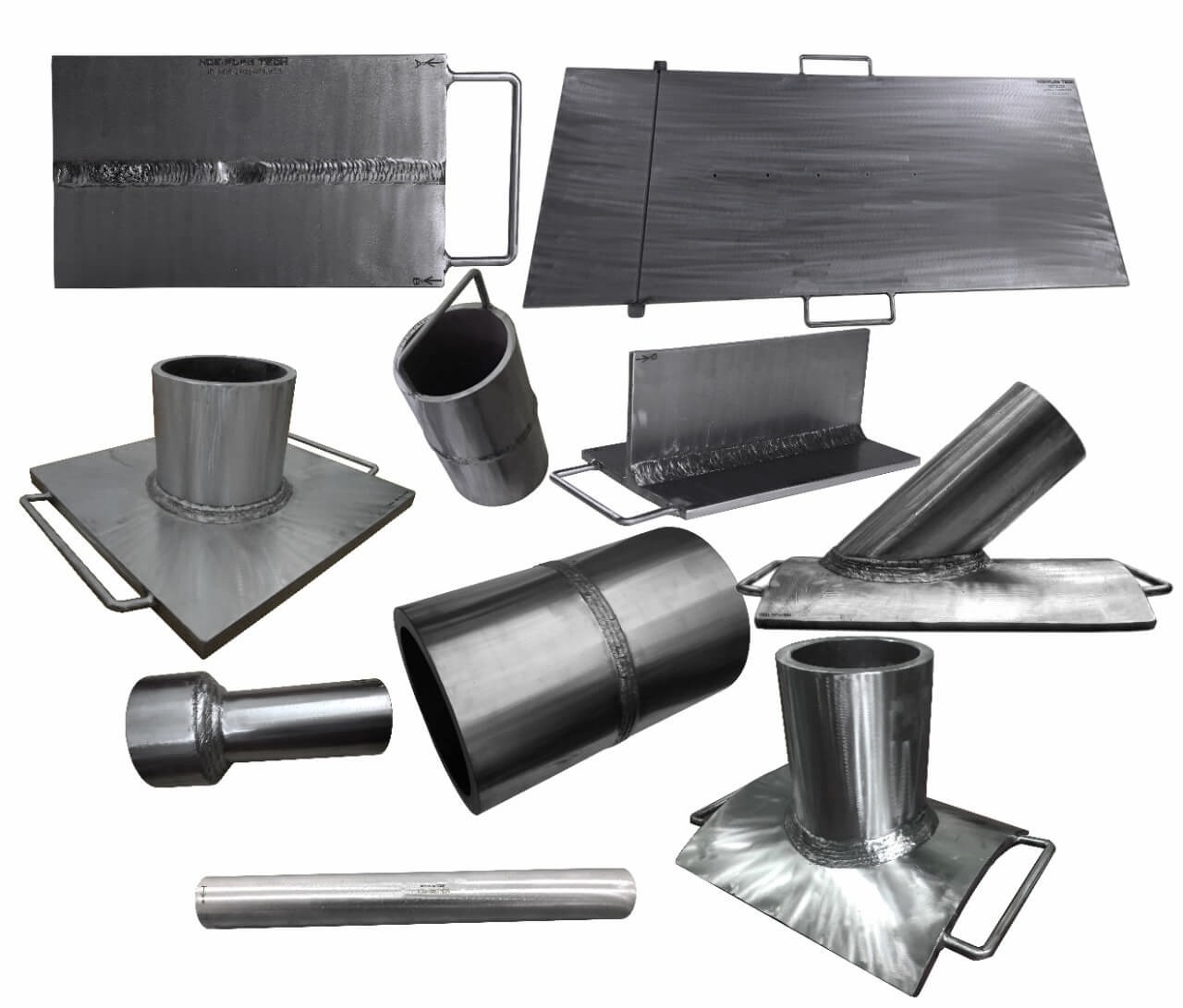

STANDARDIZED FLAWED SPECIMEN KITS FOR TRAINING, PERSONNEL QUALIFICATION, PROCEDURE AND EQUIPMENT DEVELOPMENT. STANDARDIZED FLAW SPECIMEN KIT We are providing standardized flaw specimen kit for accept / reject level of flaws as per individual standards like ASME, AWS, ISO/BS/EN. We are specialized of manufacturing welded flaw specimen in accordance to standard. As per ASME acceptance criteria we are manufacturing flaw specimen with accept level as well as in reject level and providing report with photo document.

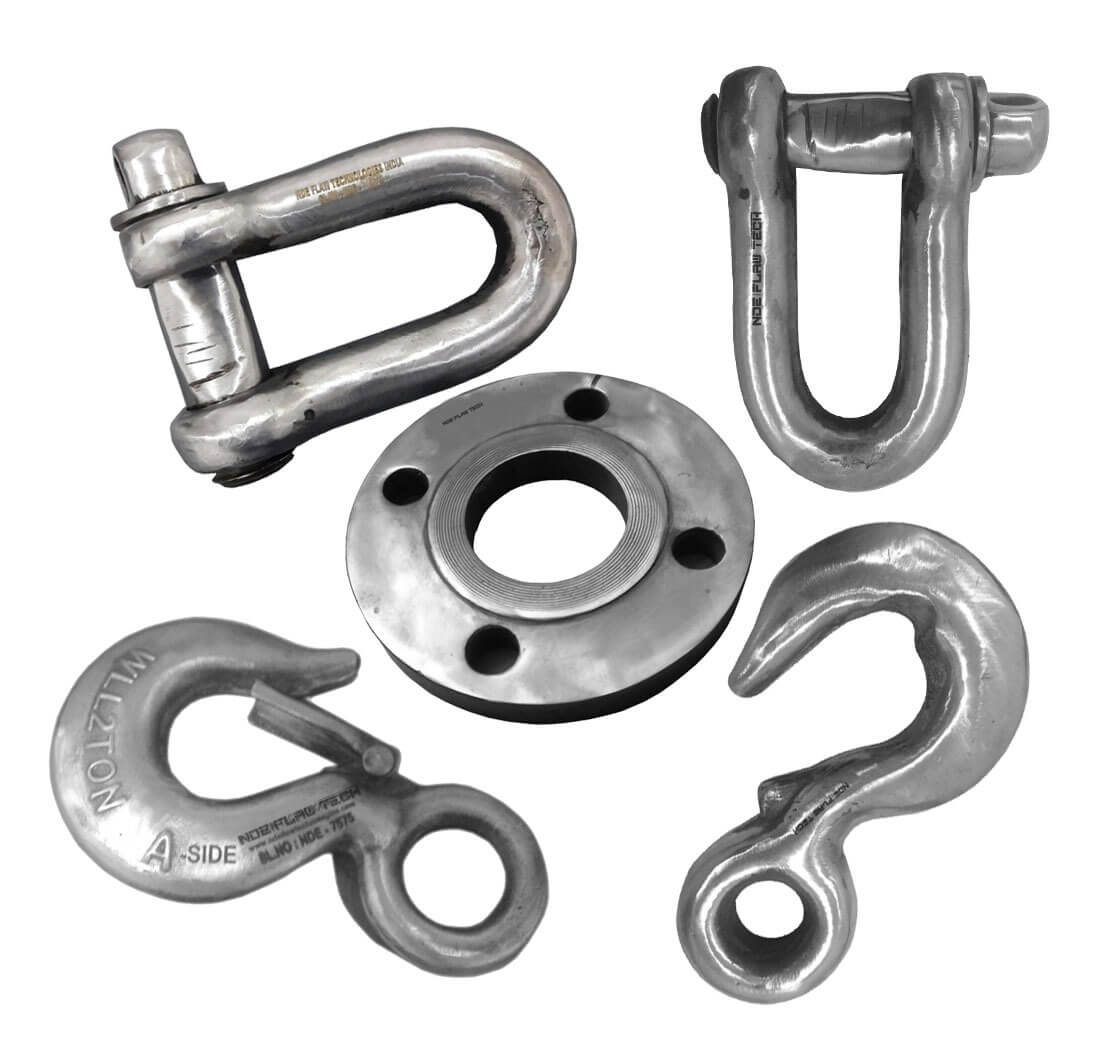

CASTING FORGING DEFECTIVE SAMPLE We are our own well equipped set up for making casting and forging defective samples as per client customized requirements. The flawed casting and forging samples are used as a demonstration process prior to examination.

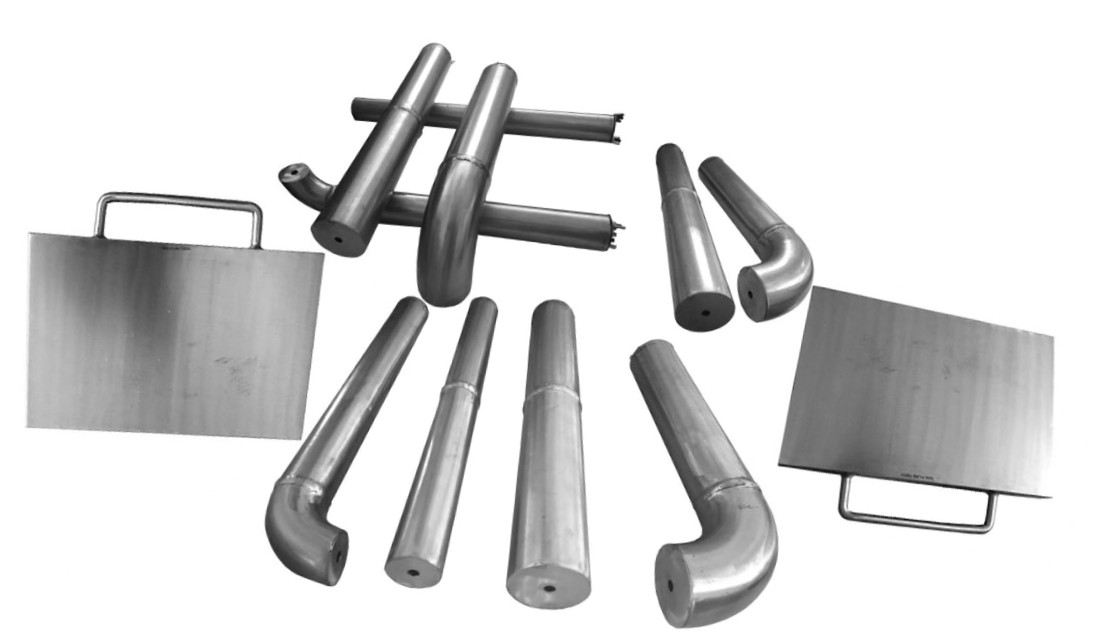

CORROSION EROSION PITTING SPECIMENS Both corrosion and erosion happen due to certain external actions on a surface. Corrosion means the destruction of materials through chemical reactions whereas erosion means the carrying away of the topsoil from the surface of the earth.
NON STANDARD / CUSTOMIZED PRODUCTS NON STANDARD PRODUCTS NDE FLAW TECHNOLOGIES PVT.LTD. Plays a major role in Non-Standard Products. We are specialized in manufacturing of calibration blocks for Non-Destructive Testing Methods; our team was well expert in customized calibration block as per the requirement of Client requirement according to their on-site examination.
TENSILE SAMPLES Tensile test specimens are prepared in a variety of ways depending on the test specifications. The most commonly used specifications are BS EN ISO 6892-1 and ASTM E8M. Most specimens use both a round or square standard cross section with two shoulders and a reduced section gauge length in between.
HEAVY MACHINING FACILITY Our Organization has in-house modern machine shop to handle machining requirements of customers. This setup allows the company to assume single source of responsibility, which results in better control of the manufacturing process as well as reducing the overall lead time for the order. Our capabilities are on par with the best in the industry.

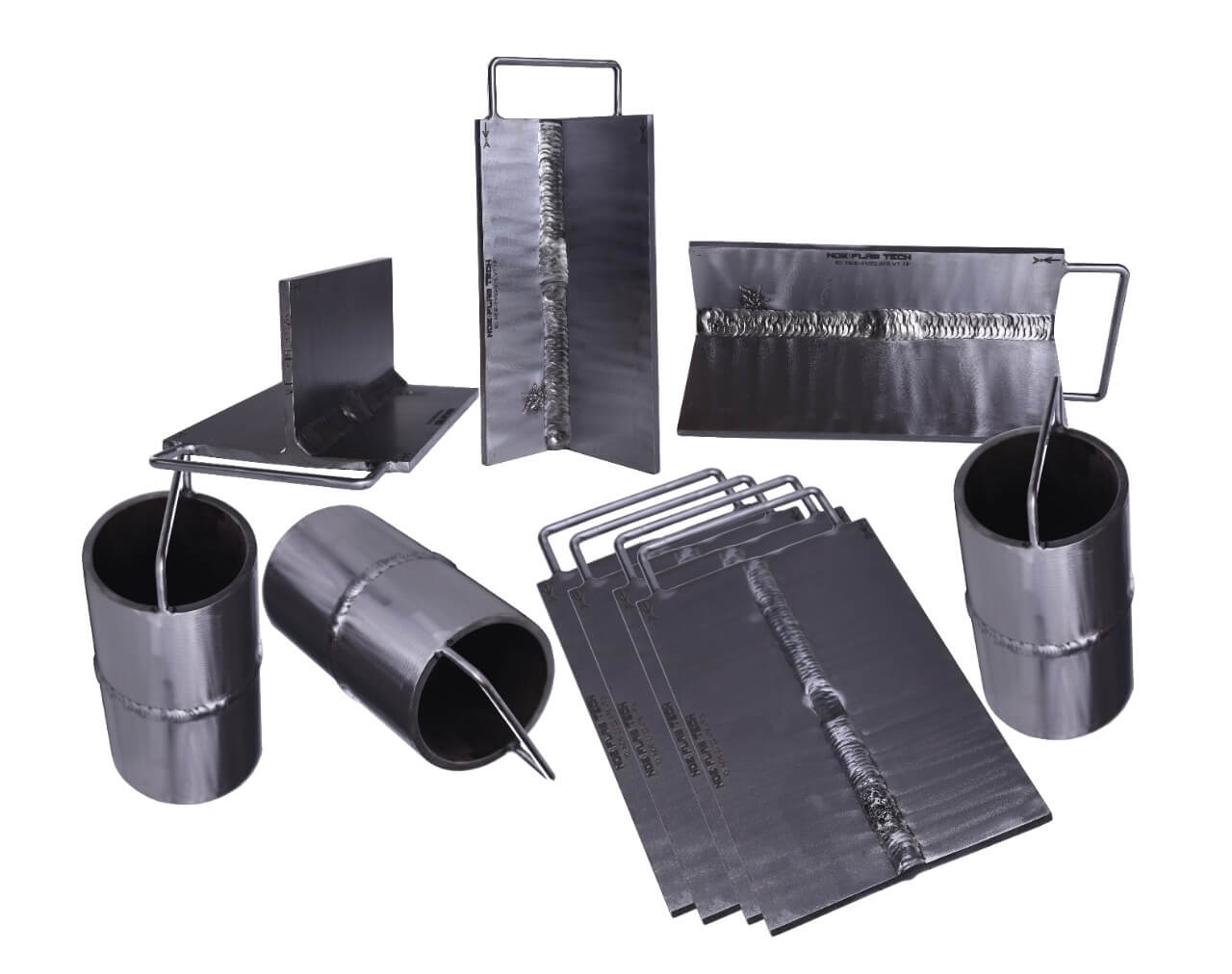

We develop structured specimen libraries and practical training kits for NDT institutes, corporate academies, universities and employer-based qualification programmes. Kits are aligned with the intended method, training level, candidate count, examination security and available equipment
We manufacture blind flawed specimens that allow candidates to detect, locate, characterize, size and report discontinuities without prior knowledge of the flaw population. Neutral specimen identification and confidential master records support fair, repeatable practical assessment.
We develop flawed specimen kits with reference to applicable API, AWS, ASME, ISO and customer requirements. Each kit is reviewed against the stated edition, method, joint configuration, essential variables and intended training or demonstration purpose.
We manufacture pipeline girth-weld mock-ups for AUT technique development, scanner validation, zone setup, detection and sizing demonstrations, operator training and customer qualification programmes.

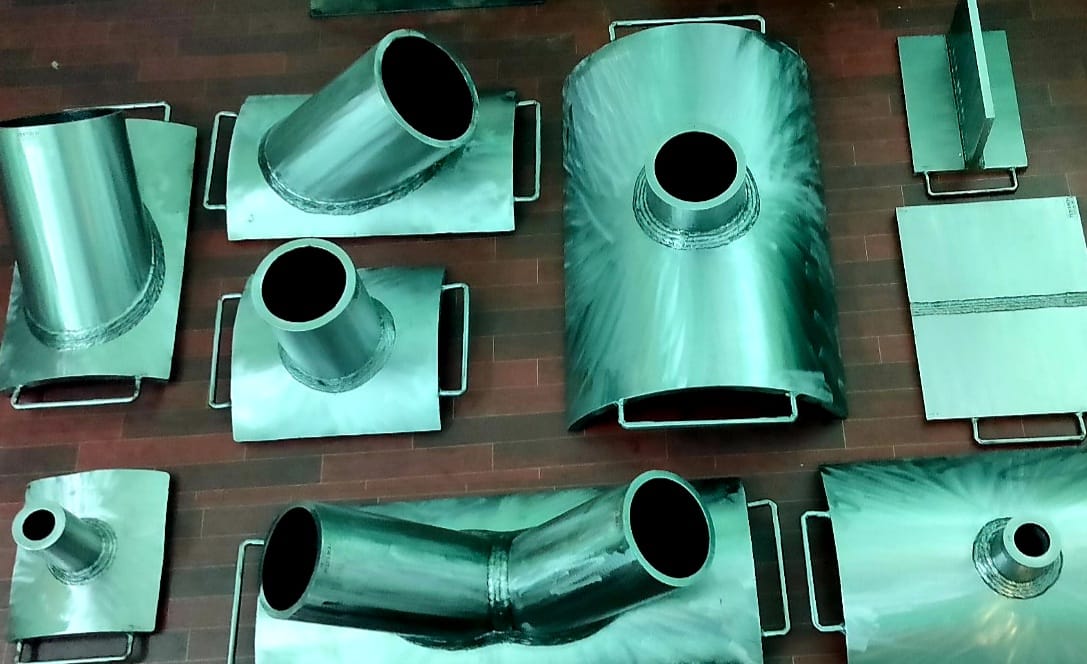

Complex weld geometries create changing sound paths, restricted probe access and difficult flaw orientations. We manufacture representative nozzle, branch, T-joint and fillet-weld mock-ups for feasibility studies, scan-plan development, training and validation.
We manufacture customer-specific aerospace reference standards and defect simulations for metallic and selected composite components. Projects are controlled by approved drawings, material requirements, reflector geometry and customer or OEM specifications.
We develop reference standards and defect-simulation samples for railway, automotive, bearing and high-volume component inspection. Designs can support manual, automated and production-line NDT systems.
We manufacture defect-simulation specimens for cast and forged components to support NDT training, equipment development, procedure trials and production-inspection validation.
We manufacture controlled material-loss mock-ups that simulate general corrosion, localized thinning, pitting and erosion for inspection development, mapping validation, training and equipment demonstrations.
We develop controlled stress corrosion cracking and fatigue crack specimens for inspection training, procedure development, equipment trials and research. Crack-generation method, target size and verification approach are selected according to material and project feasibility.
We manufacture cladded, weld-overlay and dissimilar-metal weld specimens for challenging inspection applications involving anisotropy, attenuation, interface responses and complex weld metallurgy.

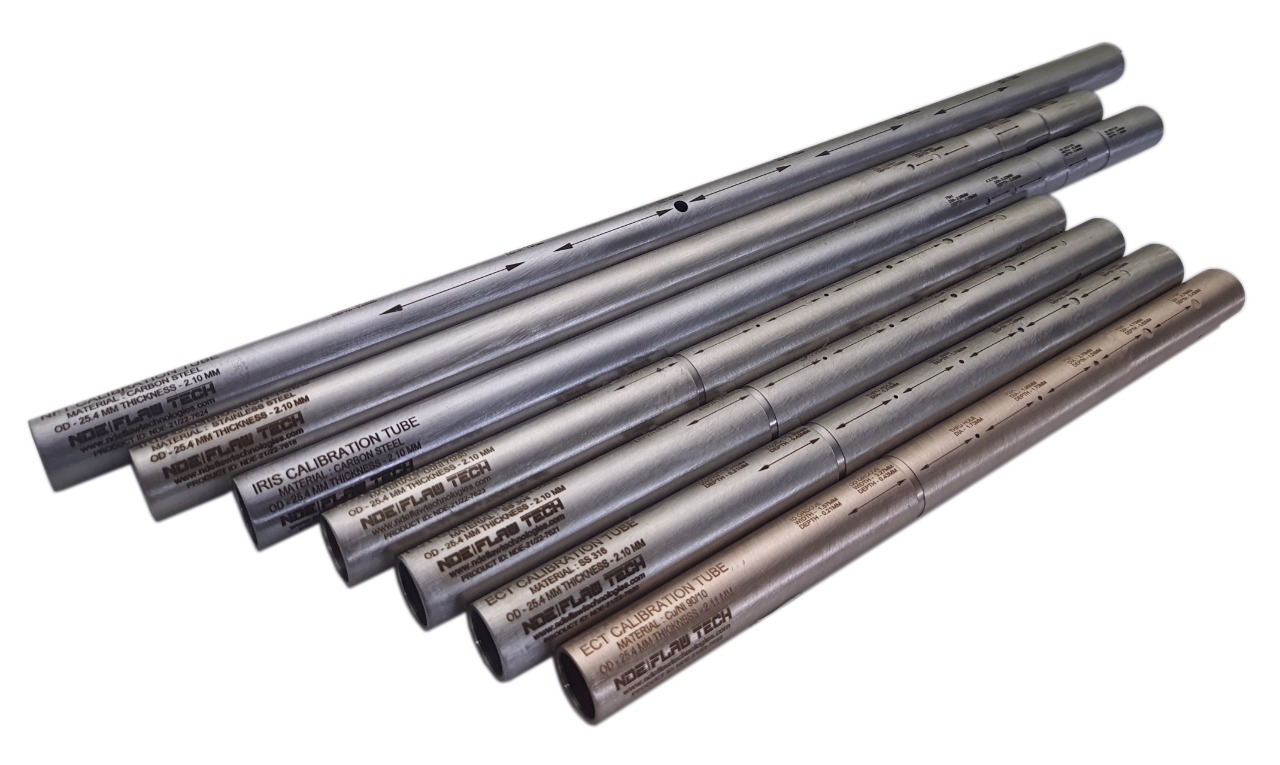

We develop tube standards, bundles and inspection mock-ups for heat-exchanger, condenser and boiler-tube training. Designs can support electromagnetic, ultrasonic, optical and multi-technique inspection programmes.
We manufacture corrosion-under-insulation and wall-loss specimens that help customers evaluate screening, mapping and sizing technologies under controlled profile, coating, insulation and lift-off conditions.
We provide precision reflector machining for NDT reference standards, calibration blocks, tube standards and research specimens. Hole type, diameter, depth, position, orientation and tolerance are controlled against the approved drawing and manufacturing feasibility.
We produce controlled surface-breaking and subsurface crack simulations for detection, sizing, training, procedure development and technology validation. The selected manufacturing route depends on the required morphology, material, location and inspection method.
We manufacture large-diameter pipe sections and heavy-component mock-ups for advanced inspection trials, scanner development, procedure validation, training and customer demonstrations.
We design and manufacture performance-verification blocks for checking NDT instruments, probes, wedges, scanners, encoders, software and complete inspection systems under repeatable conditions.
We support equipment manufacturers, research institutions, universities and inspection companies developing new NDT technologies. Support may include feasibility specimens, prototype mock-ups, controlled defects, scanner-validation components and documented comparative trials.
We manufacture purpose-built specimens that help NDT equipment suppliers, distributors and service companies demonstrate relevant detection, imaging, sizing, scanning and reporting capabilities to customers.
We provide permanent identification and traceability support for NDT reference standards, calibration blocks, flawed specimens and validation mock-ups. Clear marking connects the physical item to drawings, material records, flaw maps and lifecycle history.
We assess existing calibration blocks, reference standards and flawed specimens to determine whether they remain serviceable, can be restored or should be replaced. Refurbishment is undertaken only when functional dimensions and responses can be preserved or re-established.
We support field metallographic replication and the preparation of reusable surface-defect replica samples. The service can preserve local surface microstructure or reproduce visible cracks, corrosion and weld features for examination, training and research.
We offer selected flawed specimens, reference blocks and demonstration mock-ups for short-term training, practical assessment, customer trials and technical events. Availability, condition, rental duration and intended use are confirmed before release.
