DSC BLOCK (INCH VERSION) MONAL 800

DSC BLOCK (INCH VERSION) MONAL 800

Price: $460.00

Part Number : NDE FLAW TECH-DSC BLOCK-1009

Availability : In Stock

Description

DSC BLOCK (INCH VERSION) MONAL 800

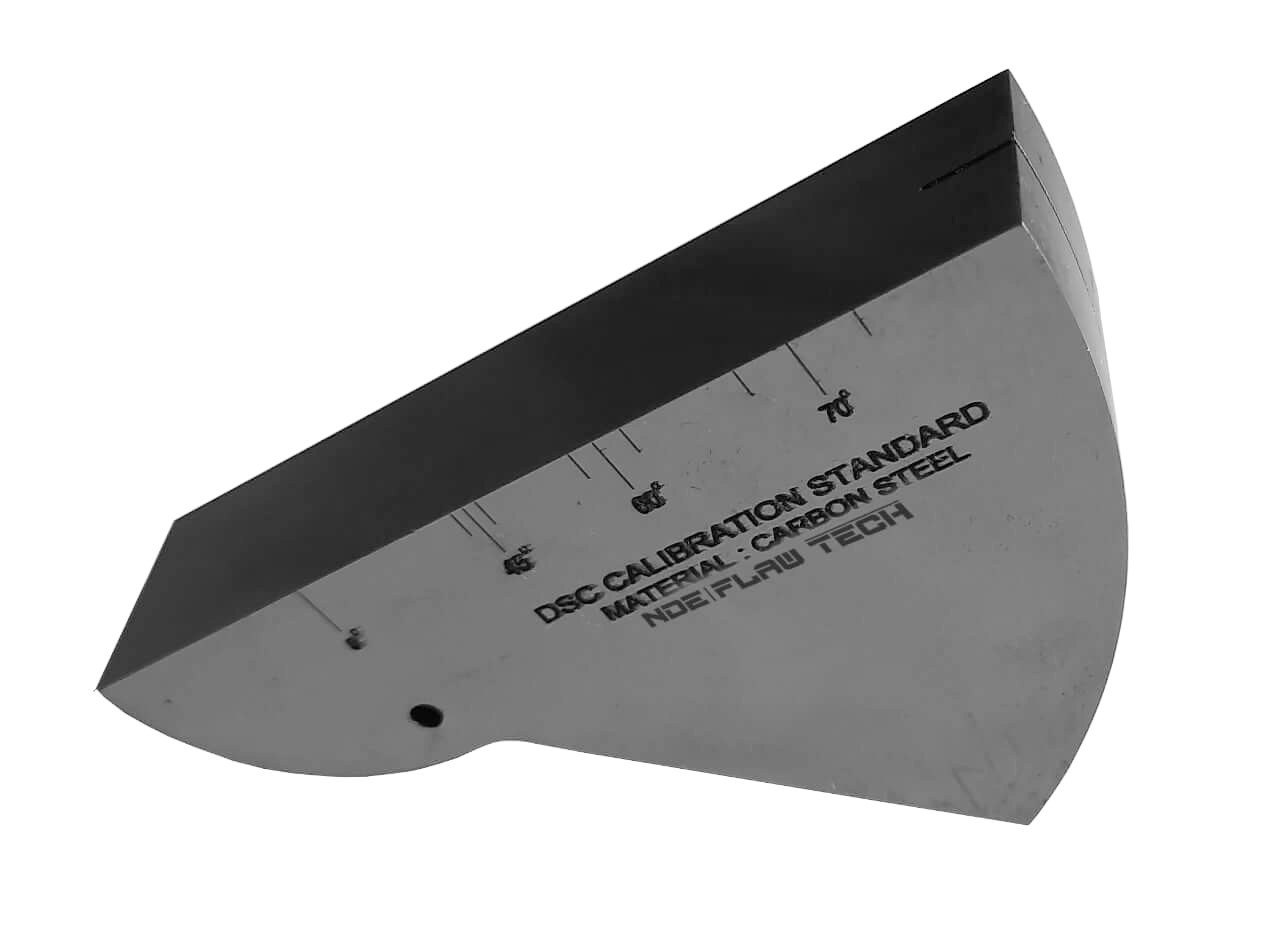

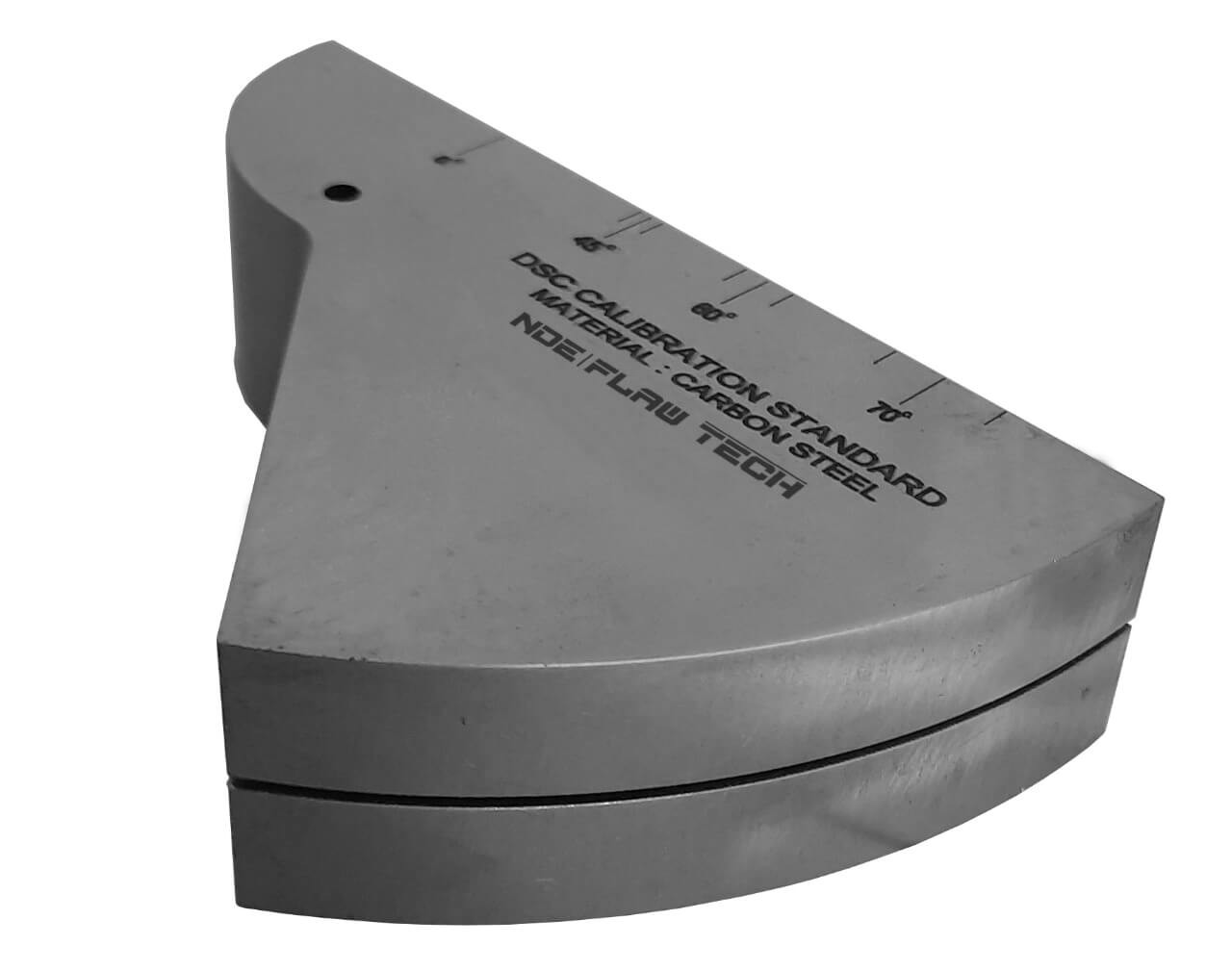

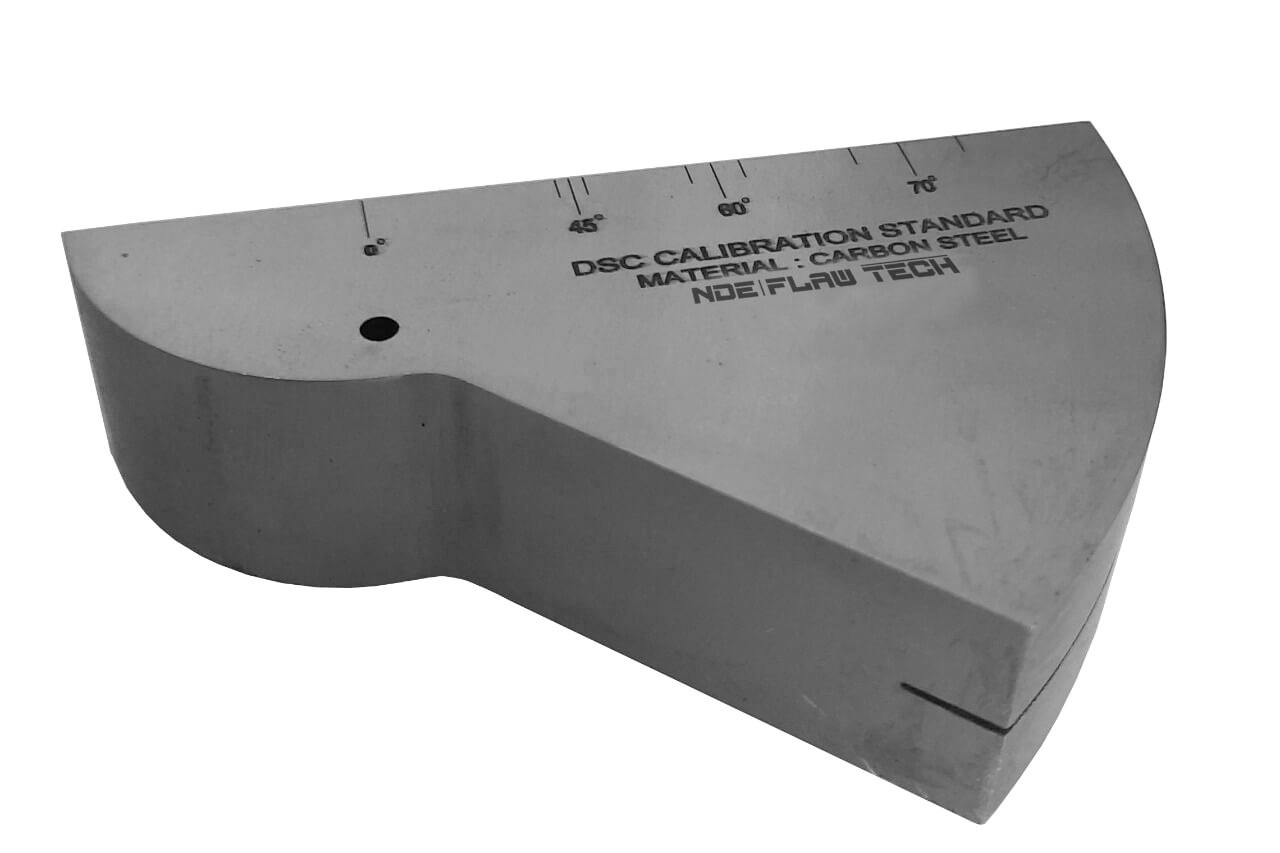

A block that closely resembles the miniature angle-beam block and is used in a similar way is the DSC AWS Block. This block is used to determine the beam exit point and refracted angle of angle-beam transducers and to calibrate distance and set the sensitivity for both normal and angle beam inspection setups. Instructions on using the DSC block can be found in the annex of American Society for Testing and Materials Standard E164, Standard Practice for Ultrasonic Contact Examination of Weldments. In accordance with a metric equivalent, based on ASTM E164 and U.S. Contains a 1.0" radius opposite a 3.0" radius. The 3.0" radius includes a 0.375" deep x 0.032" wide radiused slot. Also contains a 0° reference point for checking exit point on wedge, and a 0.125" diameter through hole and corresponding markings at 45°, 60°, and 70° for measuring actual refracted angle. In accordance with ASTM E164 and AWS 6.16.1B. Metric version available. Special DSC blocks with radiussed scanning surfaces for NPS sizes also offered.

Geometry: 1.0" and 3.0" radius, and Ø0.125" .

Dimensions: 1.0" THICK

Material: MONAL 800.
