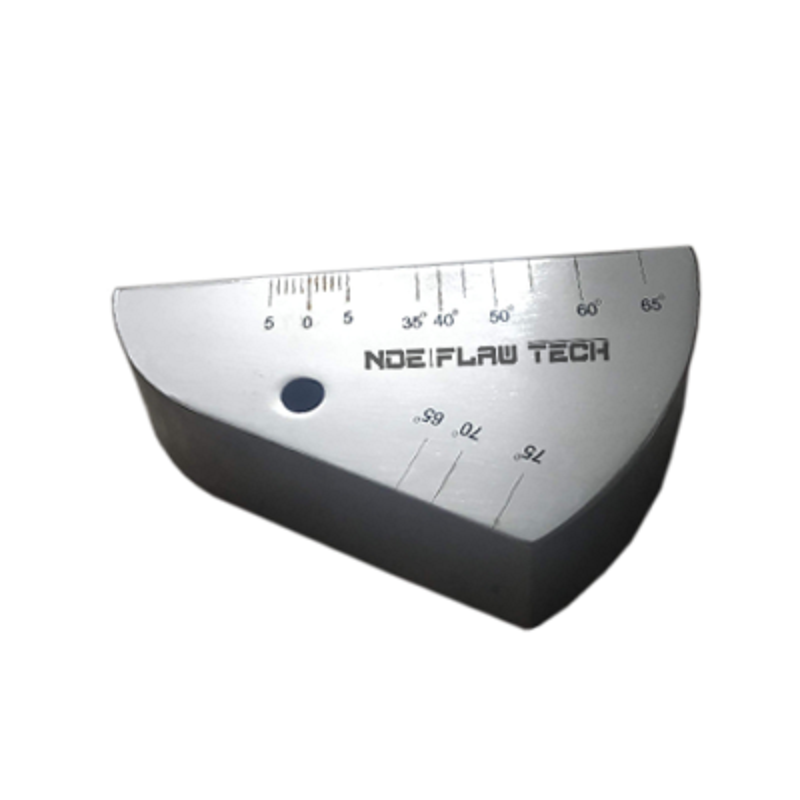

IOW Calibration Block (Inch Version) 1018 Steel

IOW Calibration Block (Inch Version) 1018 Steel

Price: $380.00

Part Number : NDE FLAW TECH-IOW BLOCK-1407

Availability : In Stock

Description

IOW Calibration Block (Inch Version) 1018 Steel

Used for beam profile measurement of angle beam transducers and measurement of transducer angles. Block used for calibrates resolution check for angle beam transducer, also used for angle beam plotting, to plot beam divergence for shear wave transducer. Analysis of amplitude with respect to exit point is carried out for each angle using data points from depths corresponding to side drilled holes in an IOW block. Graphed and tabulated results are analyzed for trends. This modeling analysis is then compared to actual lab results for refracted angle determination.

Geometry: Contains nine 0.06" diameter x 0.86" deep side drilled holes.

Dimensions: 12"(L) x 3"(H)  x 2"(W)

Material: 1018 Steel
