ISO 9712 RT TRAINING KIT (Metric Version) Carbon Steel

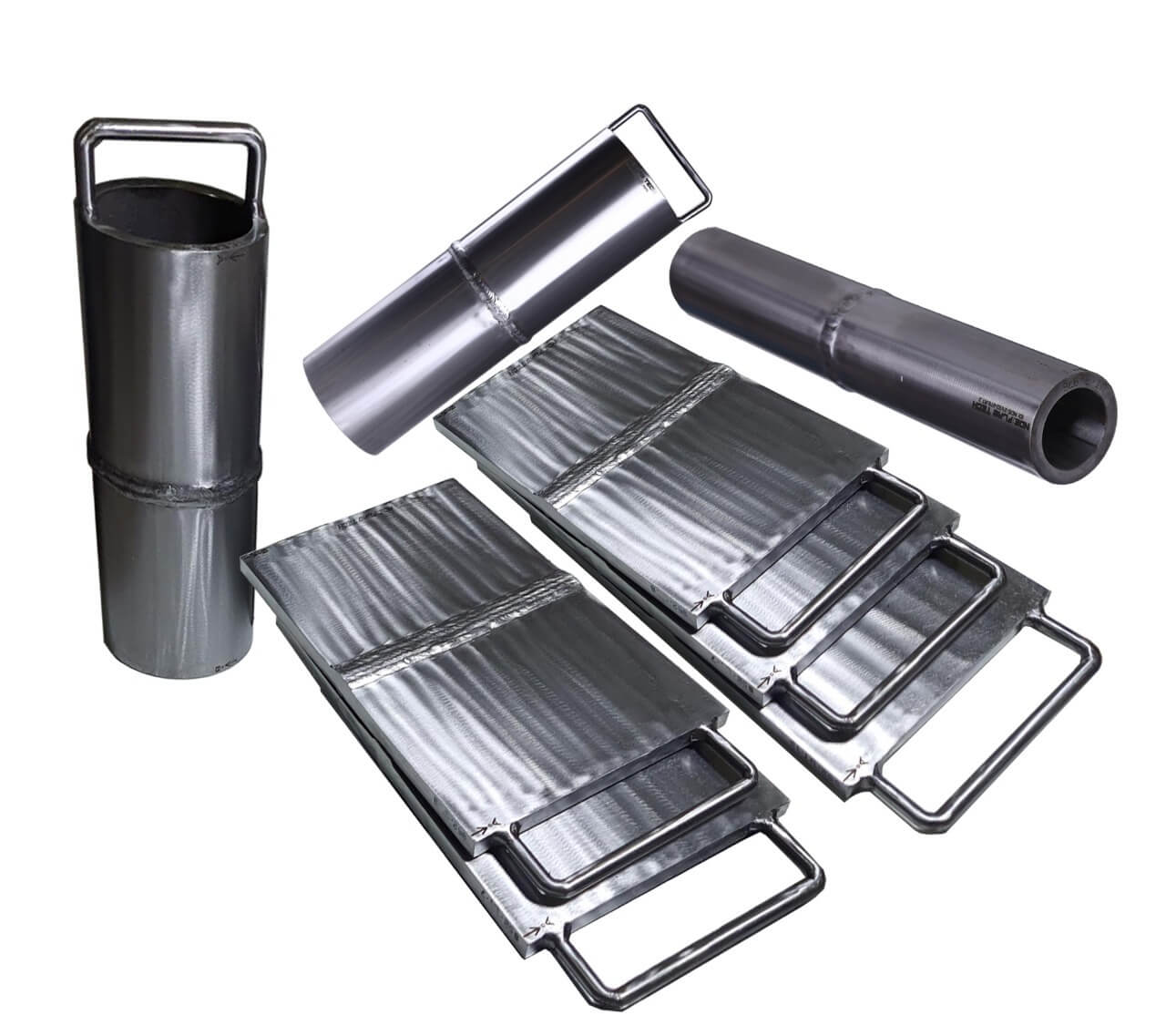

ISO 9712 Radiography testing training kit contains 8 specimens, Include 5 plates and 3 pipe.

Specimen:

(1)Single V plate – 300mm (L) x 150mm (W) on Either Side of The Weld thickness x 15mm (T)

(1)Single V plate – 300mm (L) x 150mm (W) on Either Side of The Weld thickness x 20mm (T)

(1)Single V plate – 300mm (L) x 150mm (W) on Either Side of The Weld thickness x 25mm (T)

(1)Double V plate – 300mm (L) x 150mm (W) on Either Side of The Weld thickness x 20mm (T)

(1)Double V plate – 300mm (L) x 150mm (W) on Either Side of The Weld thickness x 25mm (T)

(1)Single V Pipe – Ø88.9mm sch160 (10mm wall) x 150mm (L) on Either Side of The Weld thickness

(1)Single V Pipe – Ø114mm sch160 (12.5mm wall) x 150mm (L) on Either Side of The Weld thickness

(1)Single V Pipe – Ø168mm sch160 (18mm wall) x 150mm (L) on Either Side of The Weld thickness

MATERIAL: Carbon Steel, for any alloy request by mail
