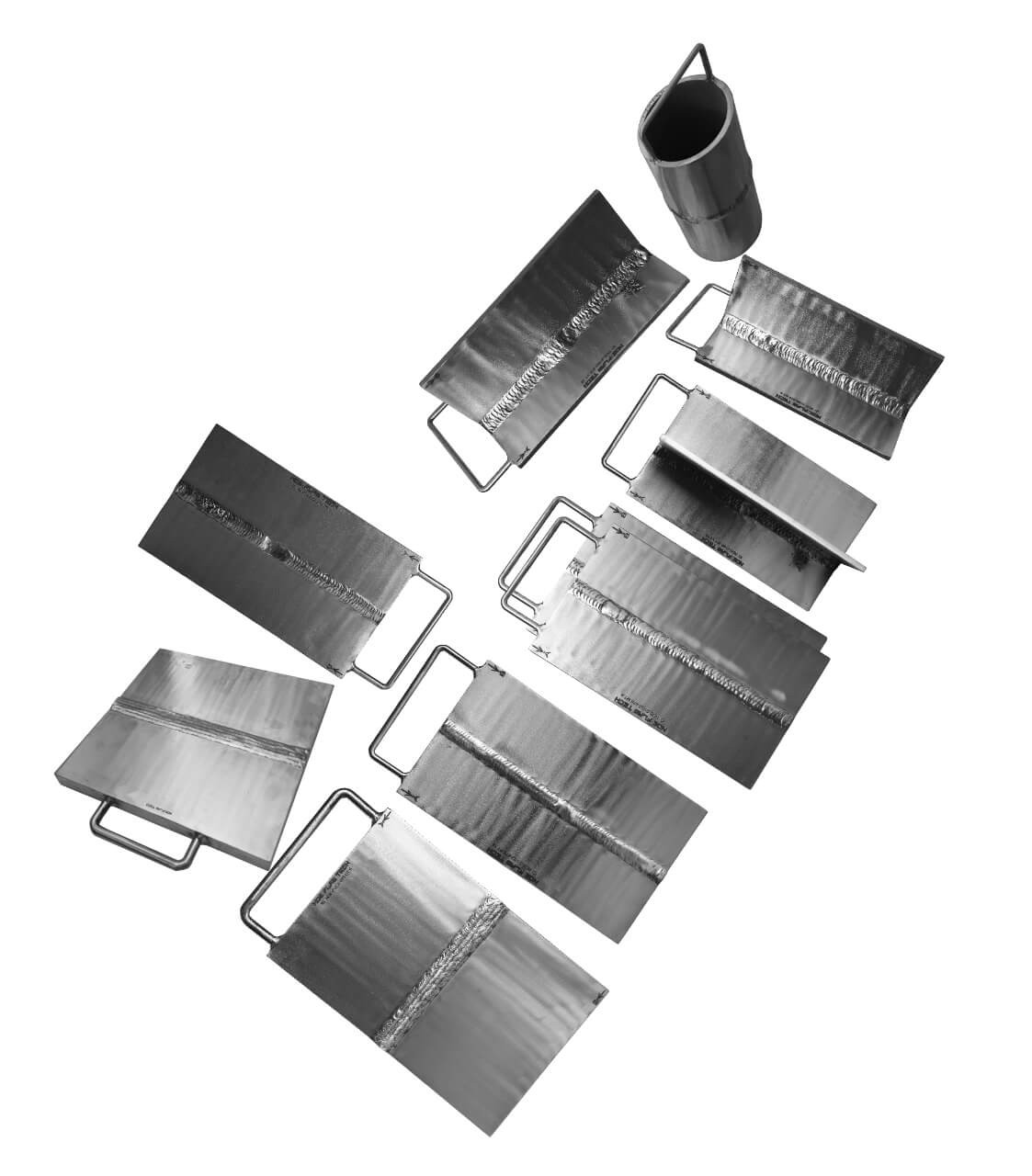

Multi Method NDT Kit (Inch Version) Mild Carbon Steel

The Ultimate NDT Training and Testing Flawed Specimen Kit:

• The Kit assist in the training and testing of at least 6 different NDT methods; UT, RT, MT, PT, VT & ET

• Kit contains 30 flaws which cover a wide range of pre-service and in-service flaws types.

• Great for comparing indication responses of the different NDT methods.

Kit Specifications:

• Set of 10 Specimens

• Specimen Alloy Mild Carbon Steel

• Custom Alloys Available

Each Specimen will contain 3 flaws

• Total of 30 flaws in the Kit.

Each specimen contains flaws that are designed to be detectable using multiple NDT methods.

Specimen Geometries Include:

• (1) Tee, 0.375” T x 12” (W) X 10” (L) x 10” (H) w/ Double Bevel Weld

• (1) Tee, 0.375” T x 12” (W) x 10” (L) x 10” (H) w/ Single Bevel Weld w/ Backing Bar

• (1) Tee, 0.5” T x 12” (W) x 10” (L) x 10” (H) w/ Double Fillet Weld

• (2) Plates, 0.625” T x 12” (W) x 10” (L) w/ Single V Weld Bevel

• (1) Plate, 0.8” T x 12” (W) x 10” (L) w/ Double V Weld Bevel

• (1) Plate, 0.375” T x 12” (W) x 10” (L) w/ Single V Weld Bevel

• (1) Plate, 0.375” T x 12” (W) x 10” (L) w/ Single V Weld Bevel w/ Backing Bar

• (1) Plate, 0.5” T x 12” (W) x 10” (L) w/ Single V Weld Bevel

• (1) Pipe, 4” Sch160 (0.5” wall) x 10” w/ Single V Weld Bevel

Kit Documentation Includes:

• Certificate of Conformance

• As Built CAD Drawings

• UT Inspection Reports

• RT, Digital & Film Radiograph Film and Technician Sheet

• Test Sheets (used during technician training and testing)
