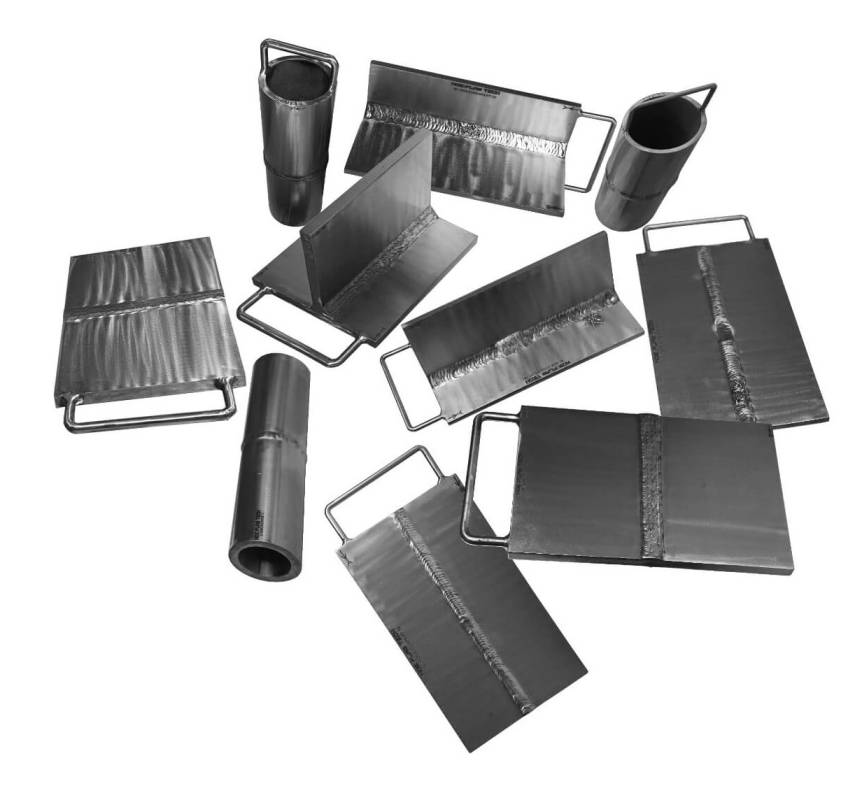

NDT DEMONSTRATION KIT (Metric Version) Carbon Steel

The NDT Demonstration Kit Contains:

5 Specimens: 4 Plates, 3 Tee and 3 Pipe

20 Total Discontinuities, “REAL FLAWS” randomly placed

• Material: Carbon Steel

• Kit Specifications: 10 specimens

• MT/PT (1) Tee: 6mm (T) x 100mm (H) x 100mm (L) x 200mm (W)

• MT/PT (1) Plate: 6mm (T) x 250mm (W) x 100mm (L) & (1) Pipe: Ø114 Sch80 (8.5mm wall) x 200mm

• VT (1) Plate: 6mm (T) x 200mm (W) x 100mm (L)

• UT (1) Plate: 15mm (T) x 300mm (W) x 100mm (L) & (1) Pipe: Ø114 Sch80 (8.5mm wall) x 300mm (L)

• UT (1) Tee: 9.5mm (T) x 150mm (H) x 250mm (W) x 100mm (L)

• RT (1) Pipe: Ø114mm Sch80 (8.5mm wall) x 300mm & (1) Plate: 15mm (T) x 300mm (W) x 100mm (L)

• Flaws: 2 each in plates and tee, 3 in pipe, for a total of 20

• Documentation Package Includes: Certificate of Conformance, CAD Drawings, RT Film and Test Sheets
