NDT DEMONSTRATION MINI KIT (Inch Version) Carbon Steel

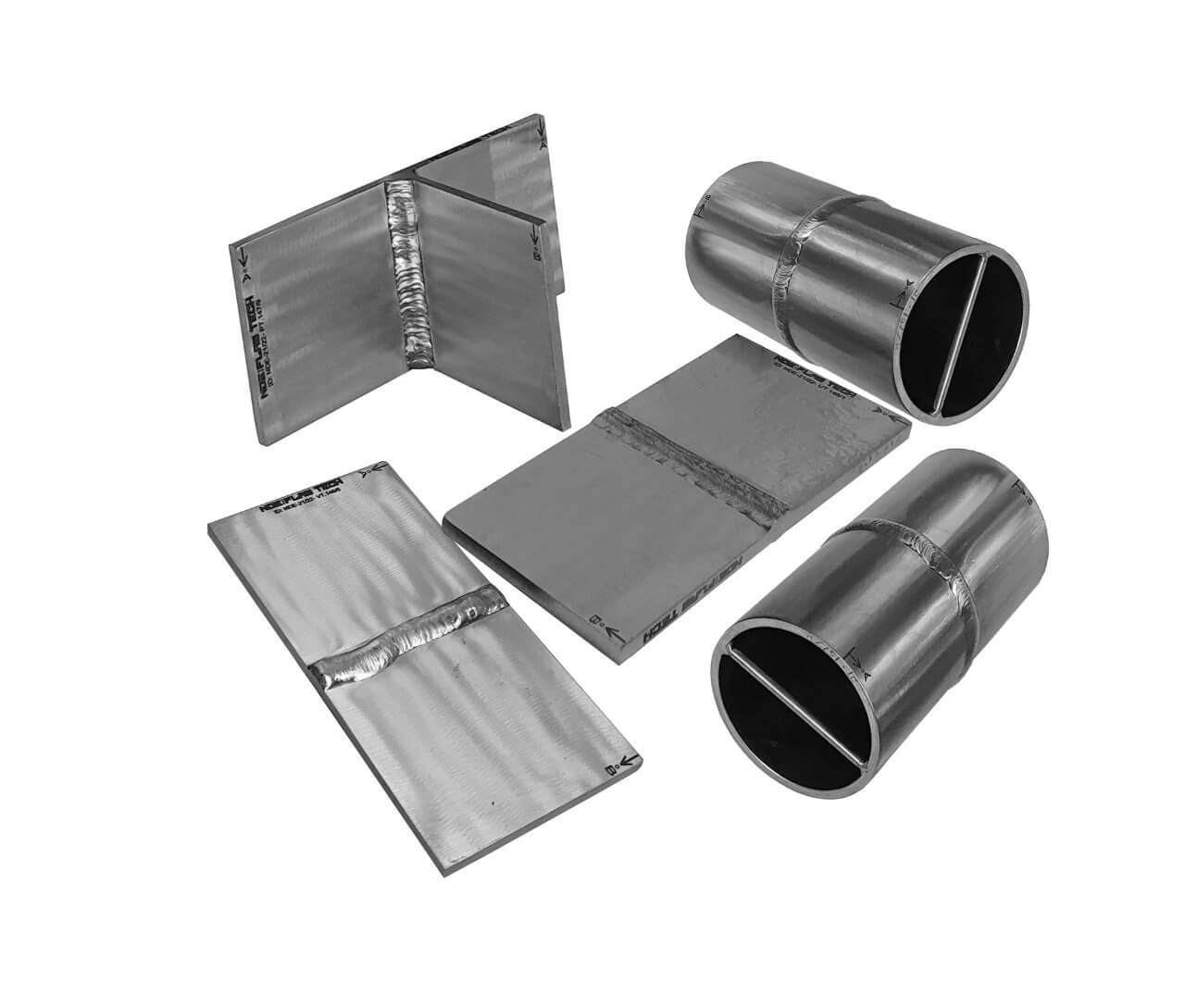

The NDT Demonstration Kit Contains:

5 Specimens: 3 Plates, 1 Tee and 1 Pipe

11 Total Discontinuities, “REAL FLAWS” randomly placed

• Material: Carbon Steel

• Kit Specifications: 5 specimens

• MT/PT (1) Tee: 0.25” (T) x 4” (H) x 8” (W) x4” (L)

• VT (1) Plate: 0.25” (T) x 4” (L) x 8” (W)

• UT (1) Plate: 0.625” (T) x 12” (W) x 4” (L)

• RT (1) Pipe: 4” Sch80 (0.337” wall) x 8” & (1) Plate: 0.625” (T) x 12” (W) x 4” (T)

• Flaws: 2 each in plates and tee, 3 in pipe, for a total of 11.

• Documentation Package Includes: Certificate of Conformance, CAD Drawings, RT Film and Test Sheets
