NDT DEMONSTRATION MINI KIT (Metric Version) Carbon Steel

NDT DEMONSTRATION MINI KIT (Metric Version) Carbon Steel

Price: $0.00

Part Number : NDE FLAW TECH-DEMONSTRATION MINI KIT-4986

Availability : Out of Stock

Description

NDT DEMONSTRATION MINI KIT (Metric Version) Carbon Steel

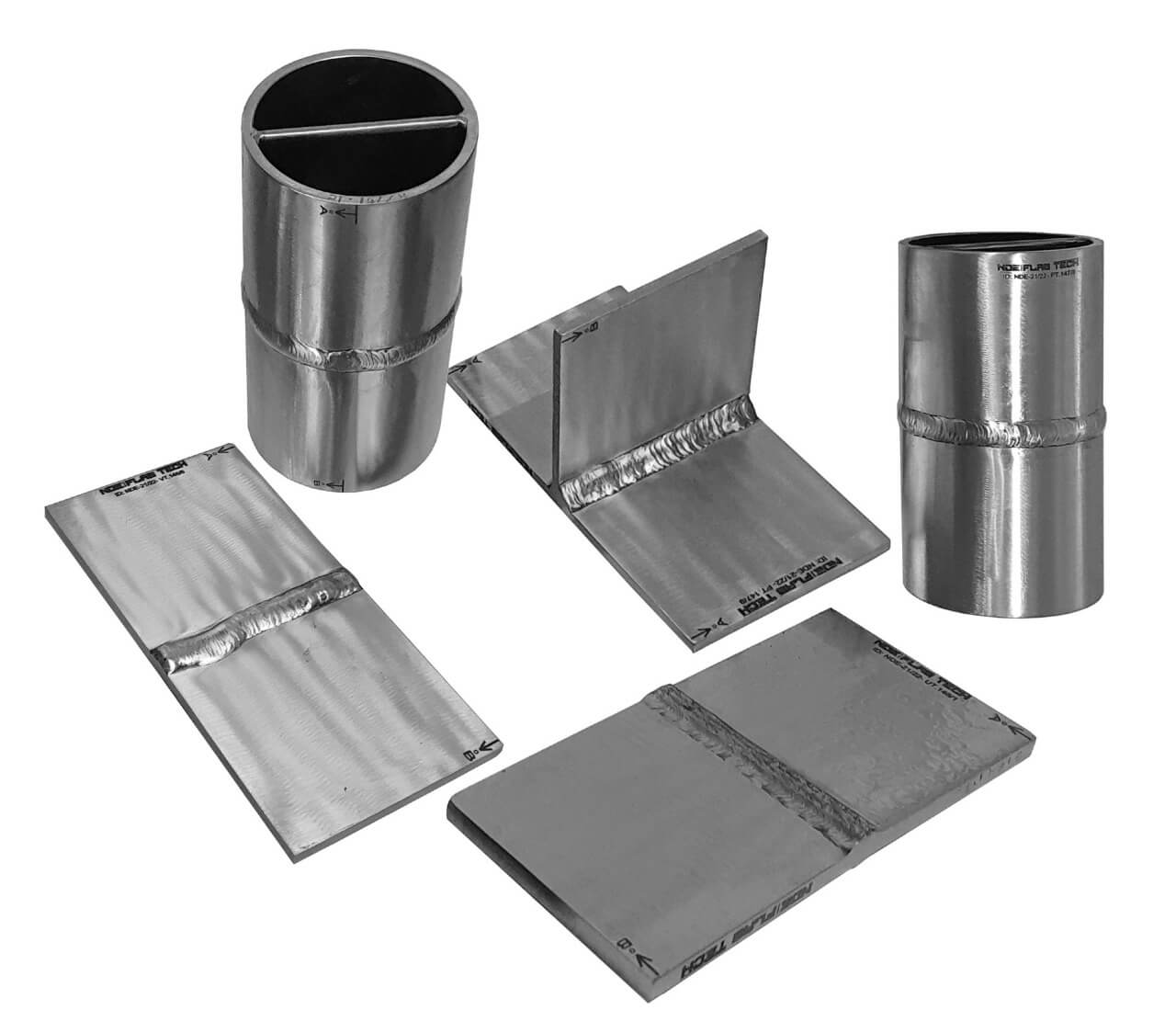

The NDT Demonstration Kit Contains:

5 Specimens: 3 Plates, 1 Tee and 1 Pipe

11 Total Discontinuities, “REAL FLAWS” randomly placed

Material: Carbon Steel

Kit Specifications: 5 specimens

MT/PT (1) Tee: 6mm (T) x 100mm (H) x 100mm (L) x 200mm (W)

VT (1) Plate: 6mm (T) x 200mm (W) x 100mm (L)

UT (1) Plate: 15mm (T) x 300mm (W) x 100mm (L)

RT (1) Pipe: Ø114mm Sch80 (8.5mm wall) x 300mm & (1) Plate: 15mm (T) x 300mm (W) x 100mm (L)

Flaws: 2 each in plates and tee, 3 in pipe, for a total of 11.

Documentation Package Includes: Certificate of Conformance, CAD Drawings, RT Film and Test Sheets
